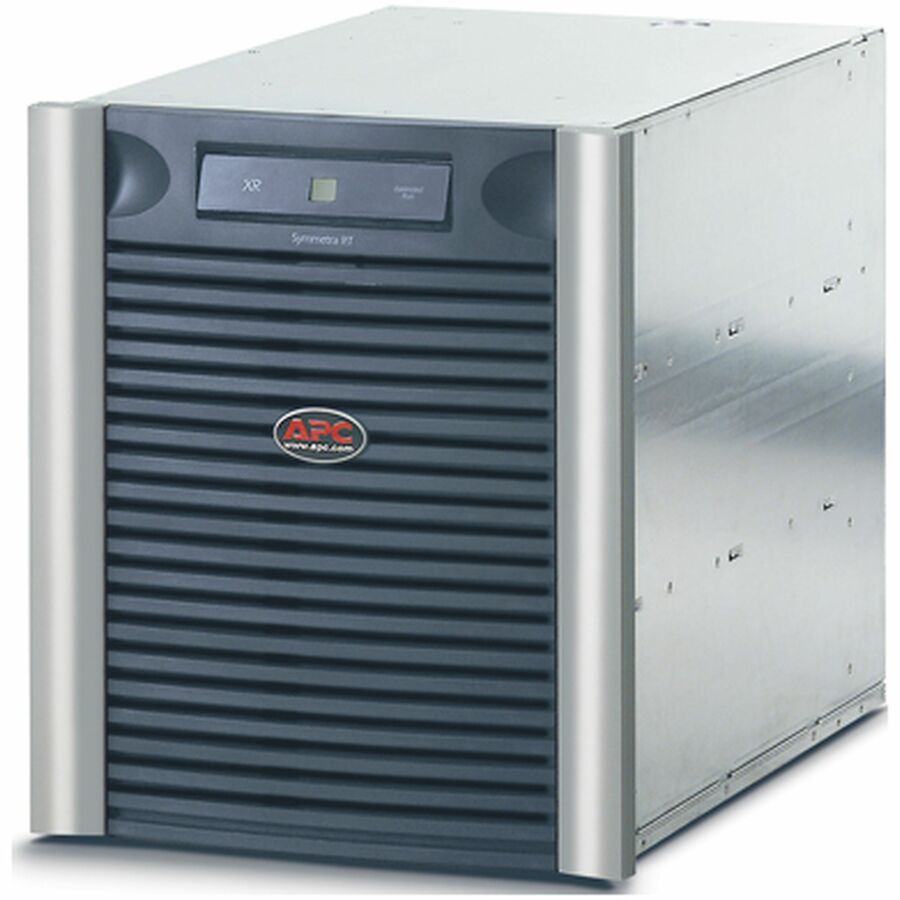

The APC Symmetra LX Extended Runtime Battery is equipped with nine SYBT5 battery modules, operating at 208V This unit is designed for high availability and scalability, making it ideal for critical power applications. It features a 13U rack-mountable form factor, ensuring efficient use of space in data centers. It includes lead-acid batteries from Panasonic. The unit supports a wide operating temperature range from 0 to 40°C and can function at altitudes up to 10,000 feet.
- 2-year repair or replace warranty.
- Lead-acid battery type.
- Form factor: rackmount; rack height: 13U.
- Can daisy chain multiple XR frames for even more runtime.
- Comes pre-populated with (9) SYBT5 battery modules.
- XR frame: Connect to the APC Symmetra LX UPS or an existing XR frame to gain more runtime in case of a power outage.
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Maximum Battery Life | 5 Year |
| Minimum Battery Life | 3 Year |
| Battery Energy | 7776 VAh |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Spill-proof/Maintenance-free |
| Output Voltage | 208 V DC |
| Size / Dimensions | |
|---|---|
| Form Factor | External |
| Rack Height | 13U |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | Yes |
| REACH free of SVHC | No |
| Environmentally Friendly | Yes |
