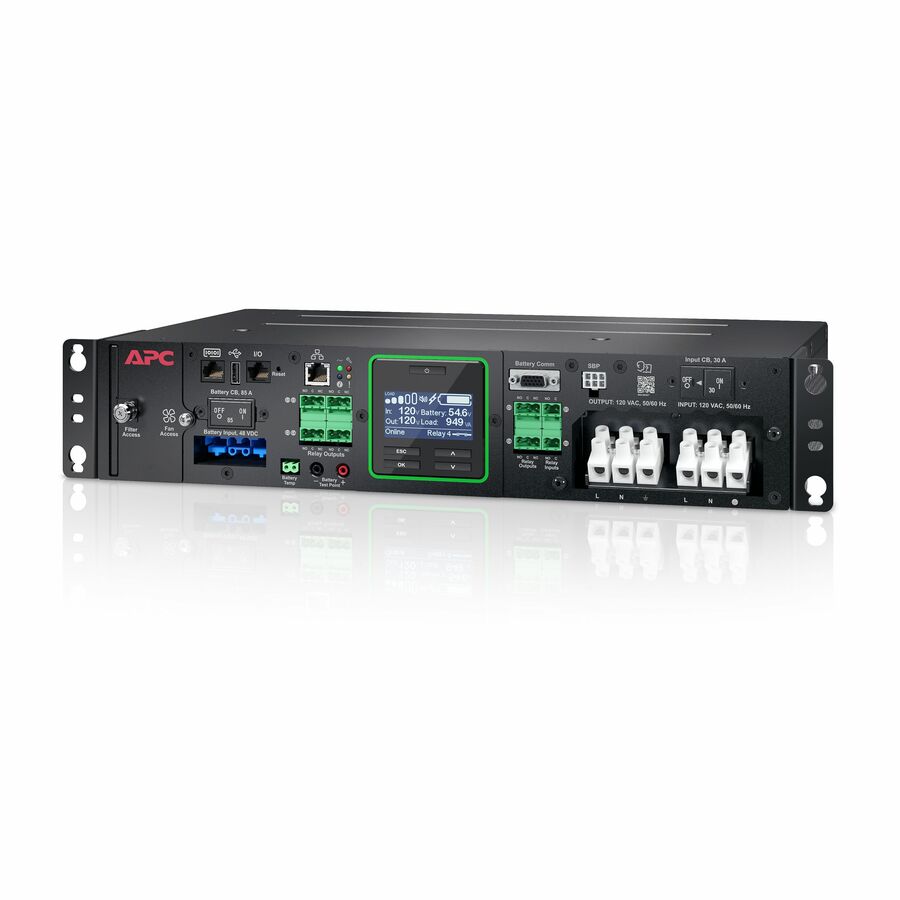

APC SmartUPS Industrial 1300VA / 1300W, 120VAC In/Out RM Conformal Coated

3,229.49 3,229.49
3,229.49

3,229.49 / Units
  • Brand
  • Mercury Free
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Additional Warranty Informati
  • Width
  • Number of Battery & Surge Out
  • RoHS Exemption Information
  • Product Take Back Program
  • REACH free of SVHC
  • REACH Declaration URL
  • EU RoHS Declaration URL
  • Hot Swappable
  • Replaceable Battery
  • Phase
  • Input Frequency
  • Status Indicators
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Form Factor
  • Mounting Preference
  • Battery Characteristics
  • Maximum Operating Temperature
  • Storage Temperature
  • Operating Humidity
  • Storage Relative Humidity
  • Input Voltage Range
  • Input Voltage
  • Output Voltage
  • Maximum Operating Elevation
  • Maximum Storage Elevation
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Line
  • Application/Usage
  • Manufacturer Website Address
  • For Country/Region
  • Load Capacity (Watt)
  • Load Capacity (VA)
  • Sound Emission (A-Weighted)
  • Output Frequency
  • DC System Voltage
  • Waveform Type
  • Surge Energy Rating
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

Proven Industrial UPS power protection for control applications and harsh environments.

  • Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
  • 1300 W load capacity - backup power for your valuable electronics
  • 1300 VA load capacity - work without any interruption during power outages
  • Replaceable battery for reliable output for prolonged usage with maximum efficiency
  • Hard Wire 3 wire (1PH+N+G) plug/connector type for maximum usability with added reliability
  • Hard Wire 3-wire (H N + G) receptacle type offers maximum safety, convenience, and increased usability
  • Single Phase phase for your convenience and optimal usage
  • Double Conversion Online UPS with industry application/usage to ensure maximum productivity with added feasibility
  • 120 V input voltage for maximum feasibility and added productivity
  • 120 V AC output voltage for better reliance and maximum usability
Brand
Brand Schneider Electric SA
Power & Battery
Number of Battery & Surge Out 1
Replaceable Battery Yes
Phase Single Phase
Input Frequency 70 Hz
Receptacle Detail 1 x Hard Wire 3-wire (H N + E)
Receptacle Type Hard Wire 3-wire (H N + G)
Plug/Connector Type Hard Wire 3 wire (1PH+N+G)
Battery Characteristics External Battery System
Input Voltage Range 88 V AC - 148 V AC
Input Voltage 120 V
Output Voltage 120 V AC
Load Capacity (Watt) 1300 W
Load Capacity (VA) 1300 VA
Output Frequency 60 Hz
DC System Voltage 48 V DC
Waveform Type Sine Wave
Surge Energy Rating 432 J
Size / Dimensions
Form Factor Rack-mountable
Mounting Preference No Preference
General Features
Hot Swappable Yes
Manufacturer Schneider Electric SA
For Country/Region United States
Compliance & Certification
Mercury Free Yes
Product Take Back Program No
REACH free of SVHC No
Maximum Operating Temperature 165.2°F (74°C)
Storage Temperature -40°F (-40°C) - 185°F (85°C)
Operating Humidity 95%
Storage Relative Humidity 95%
Maximum Operating Elevation 10000 ft
Maximum Storage Elevation 50000 ft
Environmentally Friendly Yes
Sound Emission (A-Weighted) 55 dB(A)
