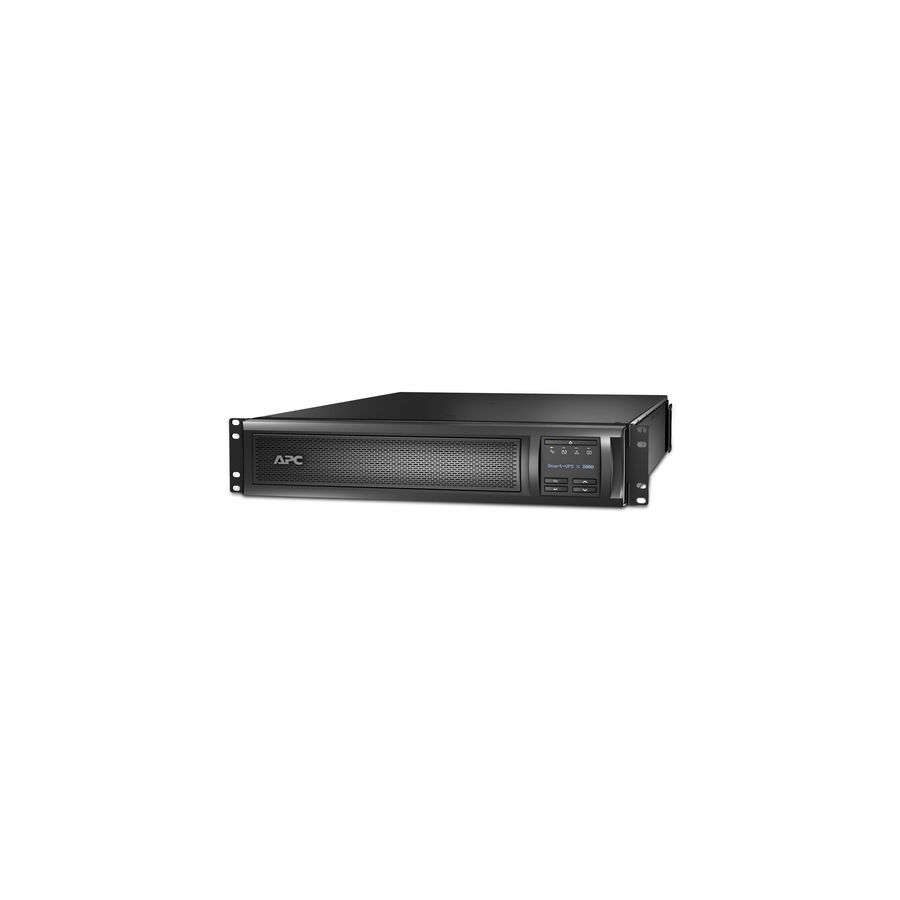

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2880VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies. The UPS is TAA Complaint.
- Ideal for servers, storage, networking & commercial applications
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Add up to 10 external battery packs (SMX120RMBP2U)
- User-selectable low voltage setting of 100V-127V
- 2880VA/2700W line interactive pure sine wave 2U rack/tower UPS (rail kit included)
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 7 |
| Receptacle Detail | 3 x NEMA 5-20R |
| Receptacle Type | NEMA L5-30P |
| Plug/Connector Type | NEMA L5-30P |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 3 Hour |
| Input Voltage Range | 70 V AC - 153 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (Watt) | 2700 W |
| Load Capacity (VA) | 2880 VA |
| Backup/Run Time (Full Load) | 6.30 Minute |
| Transfer Time | 8 ms |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 540 J |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Mounting Location | Front |
| Rack Height | 2U |
| Mounting Preference | Lower |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Cables | |
|---|---|
| Cord Length | 8 ft |
| Compliance & Certification | |
|---|---|
| Mercury Free | Yes |
| Product Take Back Program | Yes |
| Optimized Energy Efficiency | Yes |
| REACH free of SVHC | No |
| TAA Compliant | Yes |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $150000 Lifetime |
