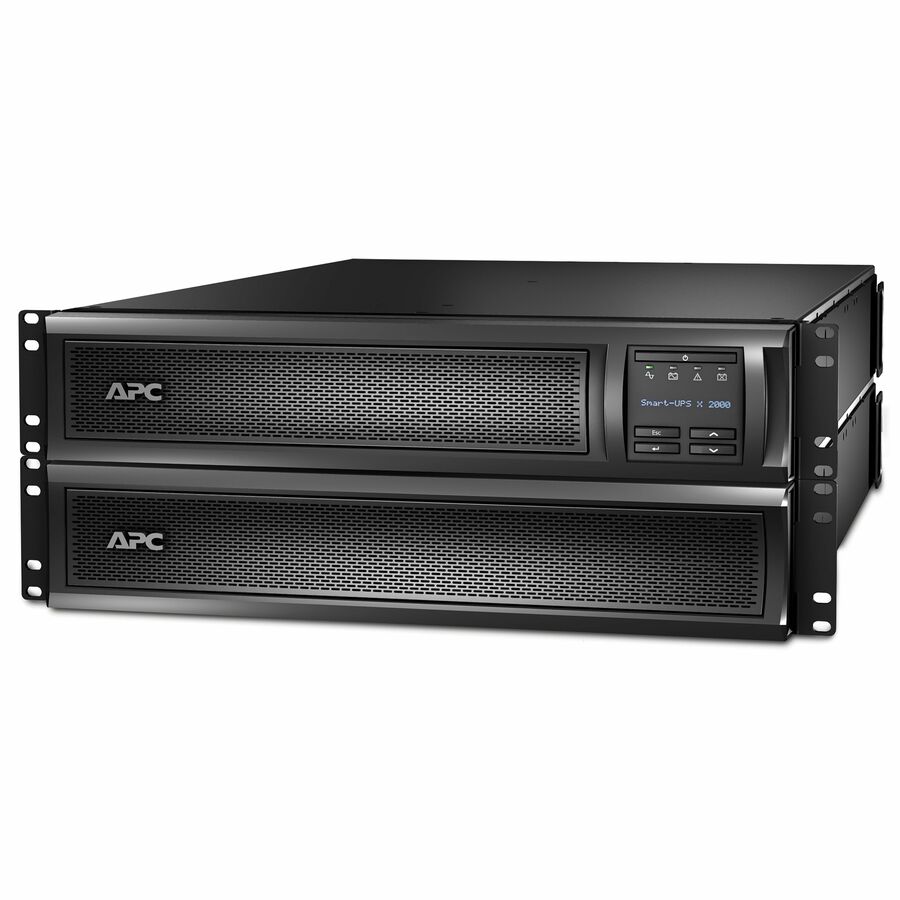

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2000VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
- Graceful shutdown of physical servers, virtual machines and HCI clusters
- Ideal for servers, storage, networking & commercial applications
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
- 1-Year Secure Network Management Card subscription included
- Add up to 10 external battery packs (SMX120RMBP2U)
- Preinstalled NMC for network-based UPS monitoring & management
- User-selectable low voltage setting of 100V-127V
- 1920VA/1800W line interactive pure sine wave 2U rack/tower UPS (rail kit included)
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Battery Characteristics | Leak-proof , Maintenance-free , Sealed |
| Number of Battery & Surge Out | 7 |
| Replaceable Battery | Yes |
| Phase | Single Phase |
| Input Frequency | 60 Hz |
| AVR | Yes |
| Receptacle Detail | 3 x NEMA 5-20R |
| Receptacle Type | NEMA L5-20P |
| Plug/Connector Type | NEMA L5-20P |
| Battery Energy | 2484 kJ |
| Battery Chemistry | Lead Acid |
| Number of Batteries | 1 |
| Typical Battery Recharge Time | 3 Hour |
| Input Voltage Range | 70 V AC - 153 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (Watt) | 1800 W |
| Load Capacity (VA) | 1920 VA |
| Output Frequency | 60 Hz |
| Backup/Run Time (Full Load) | 10.90 Minute |
| Backup/Run Time (Half Load) | 27.60 Minute |
| Transfer Time | 4 ms |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 540 J |
| Networking & Connectivity | |
|---|---|
| Network Management | USB |
| USB Ports | |
|---|---|
| USB (HID Compliant) Port | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Mounting Location | Front |
| Rack Height | 2U |
| Mounting Preference | Lower |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Alarm | UPS Power Condition |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Thermal Dissipation | 59.49 W |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Cables | |
|---|---|
| Cord Length | 10 ft |
| Compliance & Certification | |
|---|---|
| Mercury Free | Yes |
| Product Take Back Program | Yes |
| Optimized Energy Efficiency | Yes |
| REACH free of SVHC | No |
| Reach Compliance Date | 12/10/2025 |
| Single-use Plastic (SUP) Free | No |
| Sustainable Packaging | No |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Elevation | 9842.52 ft |
| Maximum Storage Elevation | 49212.60 ft |
| Environmentally Friendly | Yes |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $150000 Lifetime |
