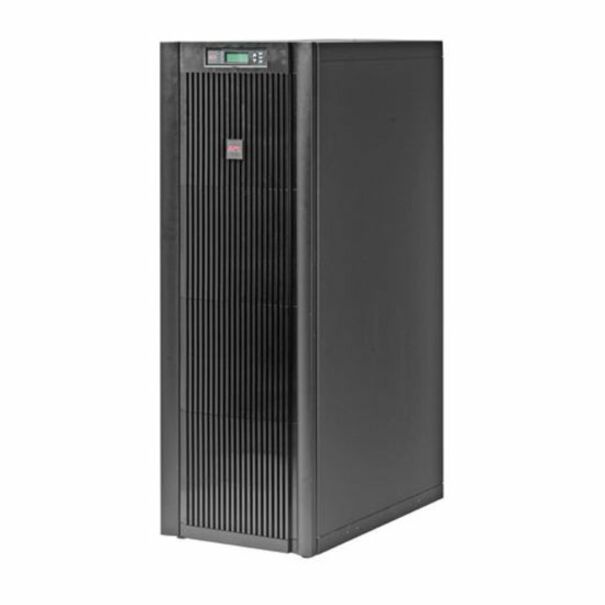

APC Smart-UPS VT 20 kVA Tower UPS offers centralized three-phase power protection with the reliability of the award winning Smart-UPS family. Ideal for small data centers, large retail stores, regional offices, and dense power requirements, the Smart-UPS VT includes dual-mains input, automatic and maintenance bypasses, and scalable runtime with hot-swappable batteries for increased availability.
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Emergency Power OFF | Yes |
| Input Frequency | 70 Hz |
| Receptacle Detail | 1 x Screw Terminal |
| Receptacle Type | Screw Terminal |
| Plug/Connector Type | Hard Wire 5-wire |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 5 Hour |
| Input Voltage | 220 V AC |
| Output Voltage | 208 V AC |
| Input Current | 53 A |
| Load Capacity (VA) | 20 kVA |
| Output Frequency | 60 Hz |
| Backup/Run Time (Full Load) | 18.20 Minute |
| Backup/Run Time (Half Load) | 45.80 Minute |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP Manageable |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower |
| General Features | |
|---|---|
| Bypass Switch | Static |
| Manufacturer | Schneider Electric SA |
| Expansion Slots | |
|---|---|
| Modular Slots | SmartSlot |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
