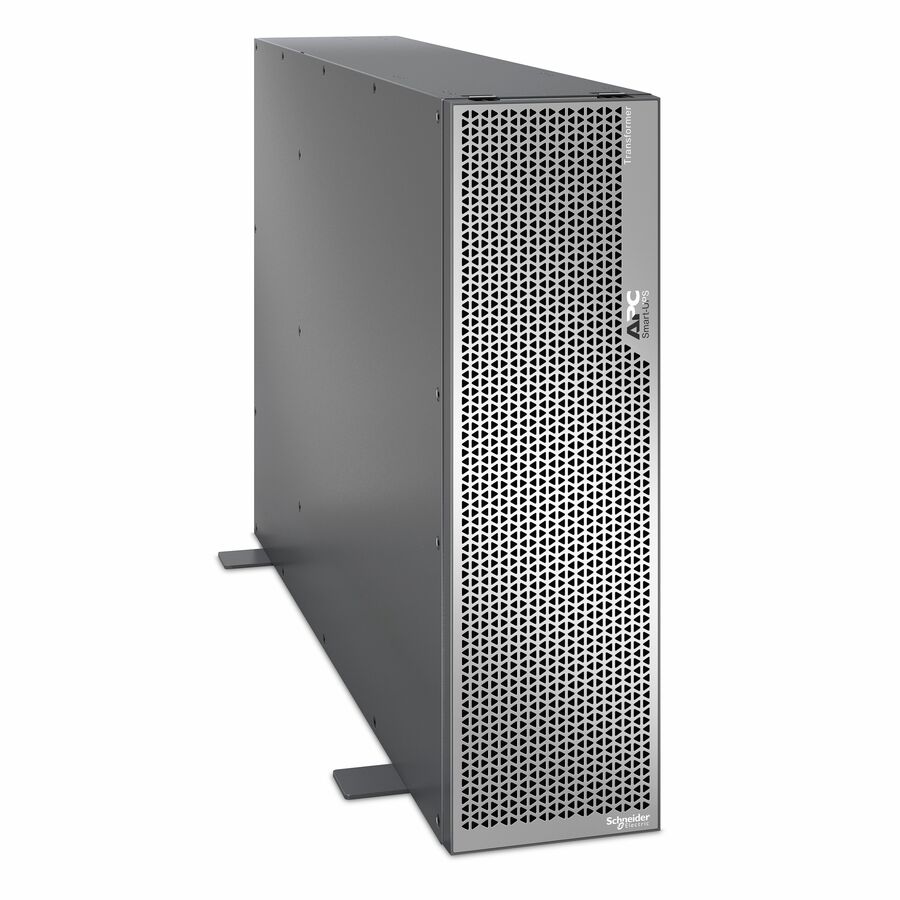

APC Smart-UPS Ultra Tower Isolation/Step-Down Transformer, 5kVA, 8x 5-20R & 2x L6-20R & 1x L6-30R & 1x L14-30R NEMA outlets

$ 1,735.99 $ 1,735.99
$ 1,735.99

$ 1,735.99 / Units
5.0 (1)
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • RoHS Exemption Information
  • Environmental Profile Availab
  • Product Take Back Program
  • End of Life Manual Availabili
  • REACH free of SVHC
  • REACH Declaration URL
  • EU RoHS Declaration URL
  • Reach Compliance Date
  • Single-use Plastic (SUP) Free
  • Sustainable Packaging
  • SCIP Number
  • Input Frequency
  • Cord Length
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Form Factor
  • Product Color
  • Color Family
  • Mounting Preference
  • Maximum Operating Temperature
  • Storage Temperature
  • Storage Relative Humidity
  • Input Voltage
  • Output Voltage
  • Maximum Operating Elevation
  • Maximum Storage Elevation
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • Packaged Quantity
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Line
  • Manufacturer Website Address
  • For Country/Region
  • Load Capacity (VA)
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
User-Manual PDF

The Smart-UPS Ultra SRTL 5kW, 3U rack/tower convertible, Step-Down Transformer lets you connect multiple voltage equipment to your existing SRTL5K power protection. User Selectable: 110V/ 120V/ 208V/ 240V, depending on the UPS output voltage and the Switch position. Connections: (2) L6-20R, (8) 5-20R, (1) L6-30R, (1) L14-30R Ships as tower Configuration. Install the step-down transformer to the left/above the compatible STLR 5kW UPS. Rackmount configuration is available with SRTRK2 rail kit accessory, sold separately.

  • 3U height stepdown transformer
  • Provides 120V output for 208V UPS
  • (2) L6-30R (1)L5-13R (2)5-20R
  • Standard warranty 5 years repair or replace
  • 1-Year Secure Network Management Card subscription included
Brand
Brand Schneider Electric SA
Power & Battery
Input Frequency 60 Hz
Receptacle Detail 1 x NEMA L14-30R
Receptacle Type NEMA L6-30P
Plug/Connector Type NEMA L6-30P
Input Voltage 208 V
Output Voltage 120 V AC
Load Capacity (VA) 5000 VA
Size / Dimensions
Form Factor Tower
Mounting Preference No Preference
General Features
Manufacturer Schneider Electric SA
For Country/Region United States
Cables
Cord Length 2.95 ft
Compliance & Certification
Product Take Back Program Yes
REACH free of SVHC No
Reach Compliance Date 12/10/2025
Single-use Plastic (SUP) Free No
Sustainable Packaging No
SCIP Number 31346aed-552c-4a16-81d9-e683a383b6da
Maximum Operating Temperature 104°F (40°C)
Storage Temperature 5°F (-15°C) - 113°F (45°C)
Storage Relative Humidity 95%
Maximum Operating Elevation 10000 ft
Maximum Storage Elevation 50000 ft
Environmentally Friendly Yes
