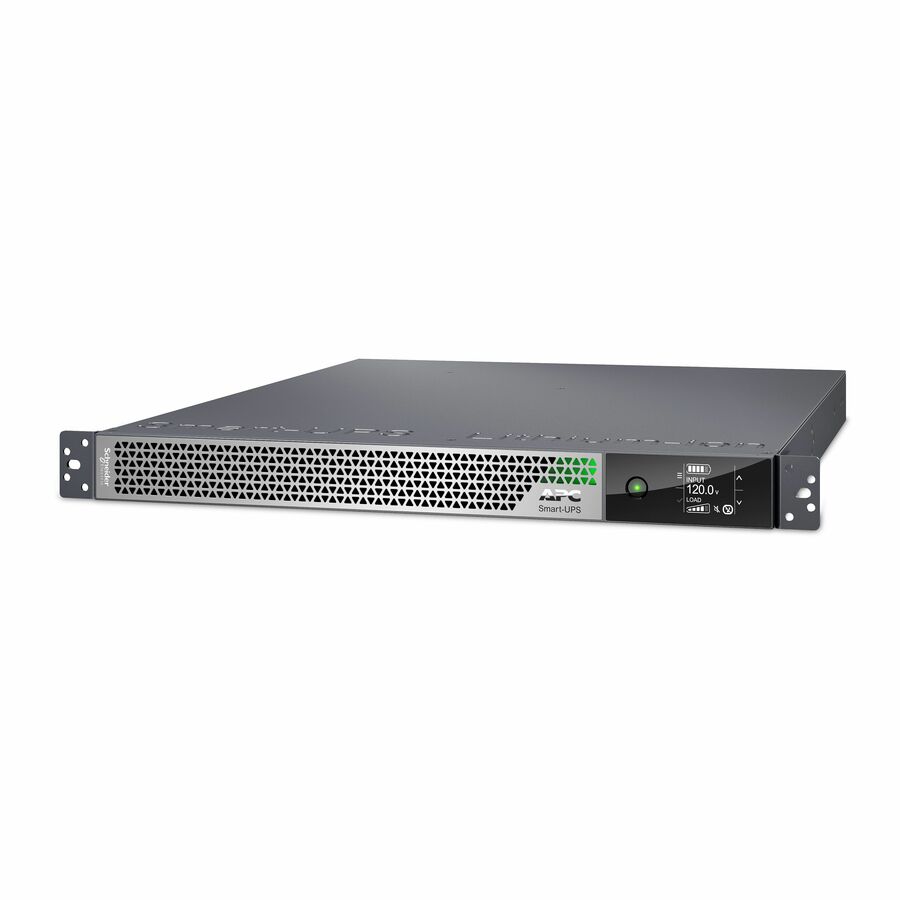

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with NEMA L5-30P input, 5x NEMA 5-20R and 1x NEMA L5-30R outlets. This Smart-UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery. The SRTL delivers clean power with zero transfer time for critical or sensitive devices. Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications.
- 3kVA/2880W on-line pure sine wave 1U rackmount UPS
- Add up to 5 external battery packs (SRTL50RMBP1U-Li) for extended runtime
- Rack/Tower convertible (rail kit included)
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- 1-Year Secure Network Management Card subscription included
- Lithium-ion battery minimizes the need to replace battery during the life time of UPS
- Graceful shutdown of physical servers, virtual machines and HCI Clusters
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 6 |
| Phase | Single Phase |
| Input Frequency | 60 Hz |
| AVR | Yes |
| EPO Port | Yes |
| Receptacle Detail | 5 x NEMA 5-20R |
| Receptacle Type | NEMA L5-30P |
| Plug/Connector Type | NEMA L5-30P |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Typical Battery Recharge Time | 1.50 Hour |
| Input Voltage | 125 V AC |
| Output Voltage | 125 V AC |
| Load Capacity (Watt) | 2880 W |
| Load Capacity (VA) | 2880 VA |
| Output Frequency | 60 Hz |
| DC System Voltage | 50 V DC |
| Waveform Type | Sine Wave |
| USB Ports | |
|---|---|
| USB (HID Compliant) Port | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower/Rack Convertible |
| Rack Height | 1U |
| Mounting Preference | No Preference |
| General Features | |
|---|---|
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Cables | |
|---|---|
| Cord Length | 7.87 ft |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | Yes |
| Optimized Energy Efficiency | Yes |
| REACH free of SVHC | No |
| Single-use Plastic (SUP) Free | No |
| Sustainable Packaging | No |
| SCIP Number | 9d64af64-ba09-487b-83a8-542c851816cc |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - -49°F (-45°C) |
| Storage Relative Humidity | 0% - 95% |
| Environmentally Friendly | Yes |
| Sound Emission (A-Weighted) | 55 dB(A) |
