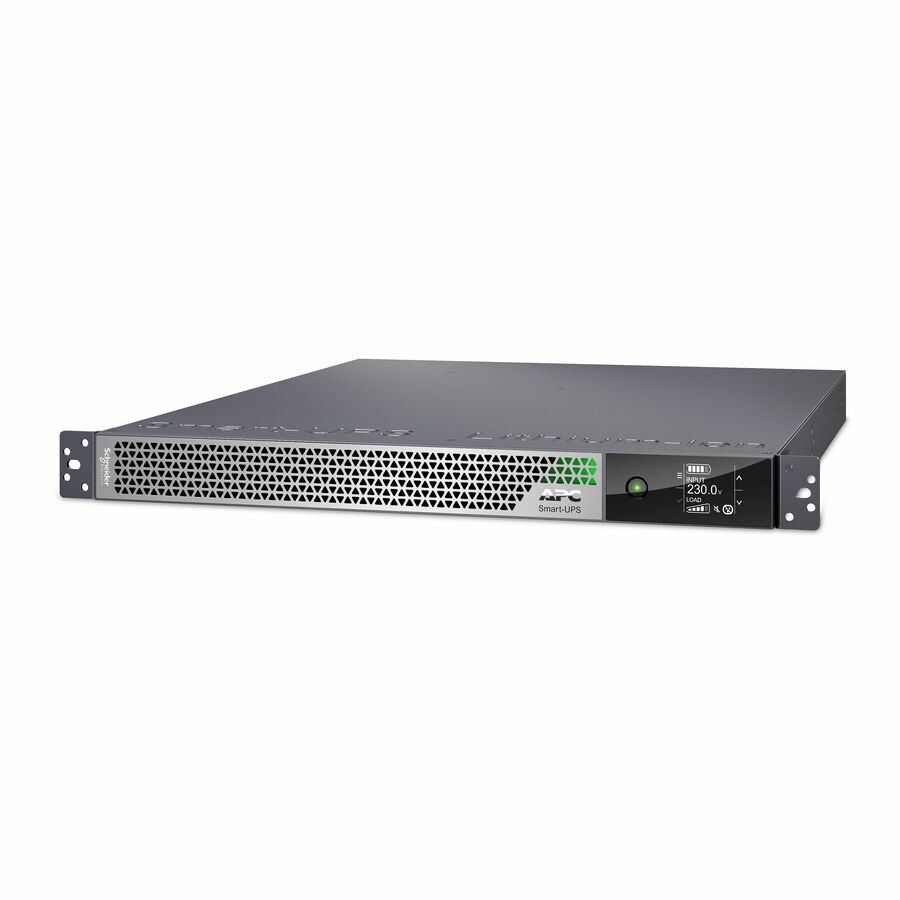

APC Smart-UPS Ultra On-Line, 2200VA, Lithium-ion, Rack/Tower 1U, 208/230V, 3x C13, 2x C19 IEC outlets, SmartConnect, Extended runtime, W/rail kit

$ 5,104.99 $ 5,104.99
$ 5,104.99

$ 5,104.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • RoHS Exemption Information
  • Environmental Profile Availab
  • Product Take Back Program
  • End of Life Manual Availabili
  • REACH free of SVHC
  • REACH Declaration URL
  • EU RoHS Declaration URL
  • Phase
  • Input Frequency
  • Network (RJ-45)
  • Cord Length
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Form Factor
  • Product Color
  • Color Family
  • Mounting Location
  • Rack Height
  • Mounting Preference
  • Battery Chemistry
  • Typical Battery Recharge Time
  • Input Voltage Range
  • Input Voltage
  • Output Voltage
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Line
  • Application/Usage
  • Manufacturer Website Address
  • For Country/Region
  • Load Capacity (VA)
  • Waveform Type
  • Surge Energy Rating
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
User-Manual PDF

With Smart-UPS™ Ultra you can put up to 2200W of power protection in places never before possible. At half the size and weight of comparable UPS the mounting brackets can be used in any of the 5 mounting styles: rack (2 and 4 post), tower, wall, ceiling and desk under mount. The auto-rotating touch screen display makes switching between horizontal and vertical mounting options instantaneous. 230V and 208V user selectable output. Lithium-ion batteries provide reduced maintenance cost with 3x the battery life. EcoStruxure Ready Smart-UPS provide visibility anywhere, anytime.

  • 1U, 2200VA/2200W UPS with 5 mounting styles: rack/tower/wall/ceiling/desk under mount
  • 230V and 208V user selectable output.
  • Lithium-ion batteries lasts 3X VRLA UPS, no need to replace the battery during the life of the UPS
  • EcoStruxure™ Ready SmartConnect. Connects to EcoStruxure IT for remote monitoring and management
  • 1-Year Secure Network Management Card subscription included
  • 5-year warranty on UPS and internal batteries
Brand
Brand Schneider Electric SA
Power & Battery
Phase Single Phase
Input Frequency 50 Hz
Receptacle Detail 3 x IEC 320-C13
Receptacle Type IEC 320-C13
Plug/Connector Type British BS1363A
Battery Chemistry Lithium Ion (Li-Ion)
Typical Battery Recharge Time 1.50 Hour
Input Voltage Range 208 V AC - 240 V AC
Input Voltage 240 V AC
Output Voltage 240 V AC
Load Capacity (VA) 2200 VA
Waveform Type Sine Wave
Surge Energy Rating 1600 J
Ethernet Port
Network (RJ-45) Yes
Size / Dimensions
Form Factor Rack-mountable
Mounting Location Horizontal
Rack Height 1U
Mounting Preference No Preference
General Features
Manufacturer Schneider Electric SA
For Country/Region United States
Cables
Cord Length 7.87 ft
Compliance & Certification
Product Take Back Program Yes
REACH free of SVHC No
Environmentally Friendly Yes
