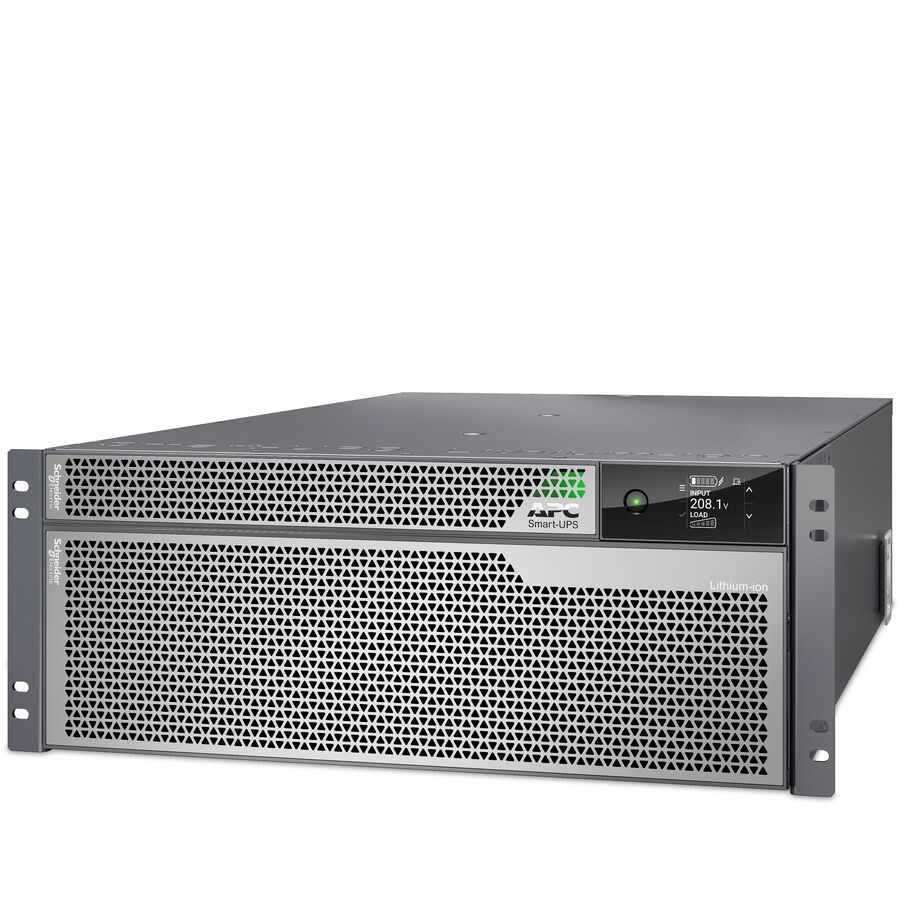

With Smart-UPS™ Ultra you can put up to 10000W of power protection in places never before possible. Make installation effortless with a 10kW UPS that is 30% smaller and lighter than any comparable UPS. The auto-rotating touch screen display makes switching between horizontal and vertical mounting options instantaneous. EcoStruxure Ready Smart-UPS provides visibility anywhere, anytime. Standard warranty, 5 years repair or replace.
- 4U, 10000VA/10000W rack/ tower convertible UPS with autorotating LCD display
- Add up to 10 external battery packs (SRTL180RM2UBP) for extended runtime
- Lithium-ion batteries lasts 3X VRLA UPS, no need to replace the battery during the life of the UPS
- EcoStruxure™ Ready for remote monitoring and management
- 1-Year Secure Network Management Card subscription included
- 5-year warranty on UPS and internal batteries
- Wireless communication capable with optional WiFi Device accessory (AP9834)
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Screen / Display | |
|---|---|
| Display | LCD |
| Power & Battery | |
|---|---|
| Phase | Single Phase |
| Input Frequency | 60 Hz |
| EPO Port | Yes |
| Receptacle Detail | 2 x NEMA L6-20R |
| Receptacle Type | NEMA L6-20R |
| Plug/Connector Type | Hard Wire 3-wire |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Typical Battery Recharge Time | 1.50 Hour |
| Input Voltage | 240 V AC |
| Output Voltage | 240 V AC |
| Efficiency | 96.4% |
| Load Capacity (Watt) | 10 kW |
| Load Capacity (VA) | 10000 VA |
| Output Frequency | 60 Hz |
| DC System Voltage | 180 V DC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1410 J |
| Networking & Connectivity | |
|---|---|
| Network Management | Network Card |
| USB Ports | |
|---|---|
| USB | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack/Tower |
| Mounting Location | Vertical |
| Rack Height | 4U |
| Mounting Preference | Lower |
| General Features | |
|---|---|
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | Yes |
| Optimized Energy Efficiency | Yes |
| REACH free of SVHC | No |
| Single-use Plastic (SUP) Free | No |
| SCIP Number | 5ee38369-4dfb-4636-ab65-b08aa3242891 |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Sound Emission | 55 dB |
