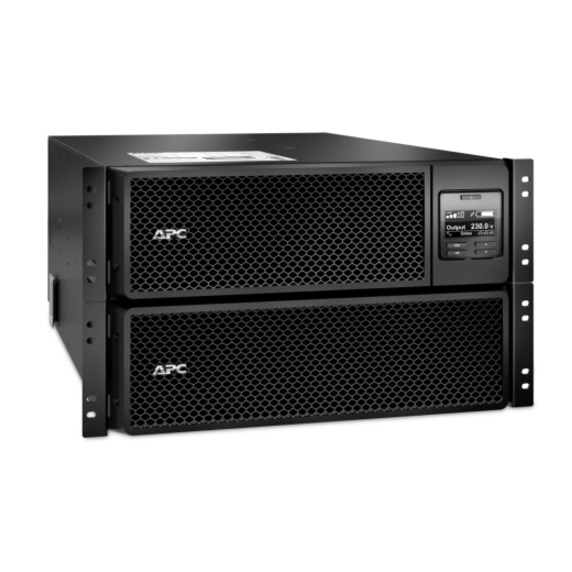

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 8kVA on-line 6U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E)/5-wire(3P+N+E) input, 6x IEC 320 C13, 4x IEC 320 C19 outlets, and 3x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
- Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
- Up to 5 minute runtime on full load to preserve critical data from power shortage interruptions
- Prevent critical data loss by staying powered during a blackout with up to 8000 W load capacity
- 8000 VA load capacity - work without any interruption during power outages
- Surge protection type provides optimal power supply output with added usability
- 2 batteries for better reliance and maximum dependability
- 1.50 Hour typical battery recharge time for better convenience and prolonged, productive usage
- Lead Acid battery chemistry to better suit your requirements with maximum productivity
- 230 V AC output voltage for better reliance and maximum usability
- Rack-mountable double conversion online ups allows a clutter-free, convenient usage with increased efficiency
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Battery Characteristics | Maintenance-free , Sealed , Spill-proof |
| Number of Battery & Surge Out | 25 |
| Emergency Power OFF | Yes |
| Circuit Breaker | Yes |
| Battery Chemistry | Lead Acid |
| Number of Batteries | 2 |
| Typical Battery Recharge Time | 1.50 Hour |
| Output Voltage | 230 V AC |
| Load Capacity (Watt) | 8000 W |
| Load Capacity (VA) | 8000 VA |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 16 Minute |
| Waveform Type | Sine Wave |
| USB Ports | |
|---|---|
| USB | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 6U |
| General Features | |
|---|---|
| Bypass Switch | Automatic & Manual |
| Hot Swappable | Yes |
| Alarm | Battery Failure |
| Protection Type | Lightning |
| Manufacturer | Schneider Electric SA |
| Thermal Dissipation | 438.73 W |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Compliance & Certification | |
|---|---|
| SCIP Number | 409c68a1-39a6-4e5f-b080-12befe783ad8 |
| Maximum Operating Temperature | 104°F (40°C) |
| Environmentally Friendly | Yes |
| Sound Emission (A-Weighted) | 55 dB(A) |
