APC Smart-UPS RT 15kVA, 208V, LCD, rackmount, 14U, 12x 5-20R & 4x L6-20R & 1x L6-30R NEMA outlets, w/transfo 208V to 120V

$ 25,881.99 $ 25,881.99
$ 25,881.99

$ 25,881.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Number of Battery & Surge Out
  • Emergency Power OFF
  • Bypass Switch
  • RoHS Exemption Information
  • Environmental Profile Availab
  • Product Take Back Program
  • End of Life Manual Availabili
  • REACH free of SVHC
  • REACH Declaration URL
  • EU RoHS Declaration URL
  • Modular Slots
  • Single-use Plastic (SUP) Free
  • Network Management
  • Phase
  • Input Frequency
  • Overload Protection
  • Network (RJ-45)
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Serial Port
  • Form Factor
  • Product Color
  • Color Family
  • Mounting Location
  • Rack Height
  • Mounting Preference
  • Battery Chemistry
  • Number of Batteries
  • Battery Characteristics
  • Typical Battery Recharge Time
  • Input Voltage
  • Output Voltage
  • Input Current
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • Country of Origin
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Line
  • Product Model
  • Manufacturer Website Address
  • For Country/Region
  • Load Capacity (VA)
  • Output Frequency
  • Backup/Run Time (Full Load)
  • Waveform Type
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
User-Manual PDF

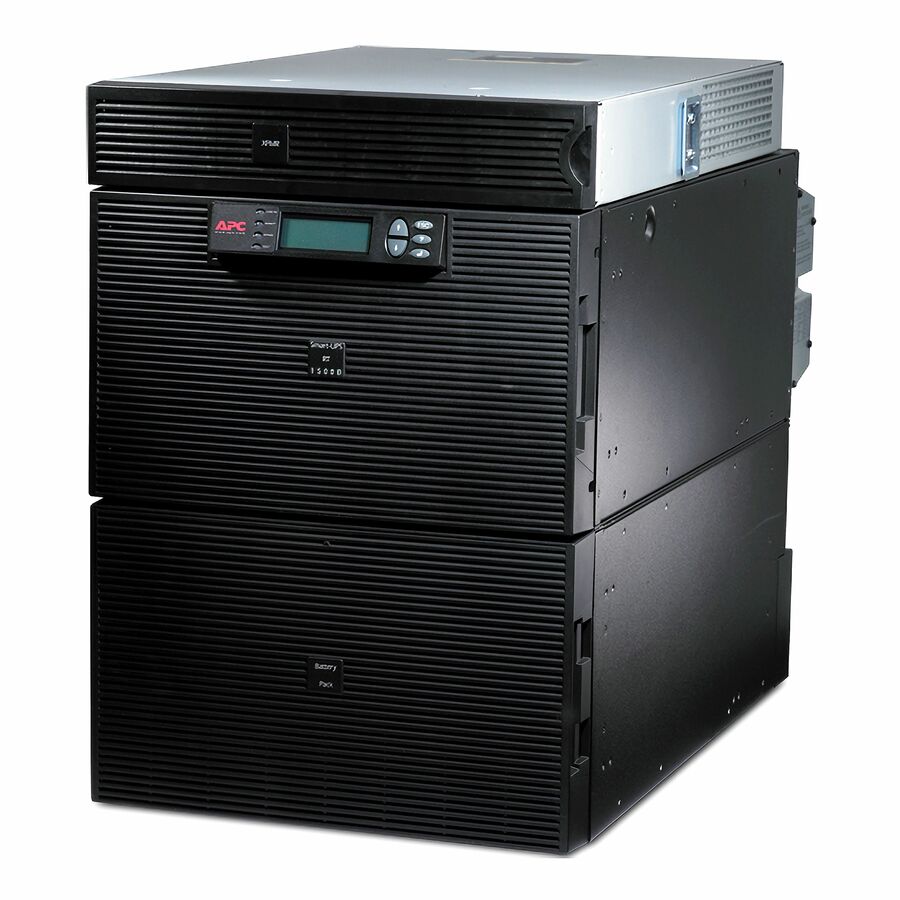

The APC Smart-UPS RT is an online UPS with transformer and a power rating of 15kVA and output power capacity of 12000 watts. It includes multiple output connections such as NEMA 5-20R, NEMA L6-20R and NEMA L6-30R. This model is includes a lead-acid battery and is rack-mountable. It features a double conversion online topology, sine wave waveform type, and built-in bypass.

  • High density, double-conversion on-line power protection with scalable runtime
  • LCD display for easy monitoring and management
  • Rackmount design fits 14U space for flexible installation
  • 15kVA power capacity for high-demand applications, 208V input for efficient power distribution
Brand
Brand Schneider Electric SA
Power & Battery
Number of Battery & Surge Out 17
Emergency Power OFF Yes
Phase Single Phase
Input Frequency 60 Hz
Overload Protection Yes
Receptacle Detail 1 x NEMA L6-30R
Receptacle Type NEMA L6-30R
Plug/Connector Type Hard Wire 3-wire
Battery Chemistry Lead Acid
Number of Batteries 4
Battery Characteristics Maintenance-free/Sealed/Spill Proof
Typical Battery Recharge Time 2.50 Hour
Input Voltage 240 V AC
Output Voltage 240 V AC
Input Current 83 A
Load Capacity (VA) 15 kVA
Output Frequency 60 Hz
Backup/Run Time (Full Load) 8 Minute
Waveform Type Sine Wave
Networking & Connectivity
Network Management SNMP Manageable
Ethernet Port
Network (RJ-45) Yes
Size / Dimensions
Form Factor Rack-mountable
Mounting Location Front
Rack Height 14U
Mounting Preference Lower
General Features
Bypass Switch Static
Manufacturer Schneider Electric SA
For Country/Region United States
Expansion Slots
Modular Slots SmartSlot
Misc Ports
Serial Port Yes
Compliance & Certification
Product Take Back Program Yes
REACH free of SVHC No
Single-use Plastic (SUP) Free No
Environmentally Friendly Yes
