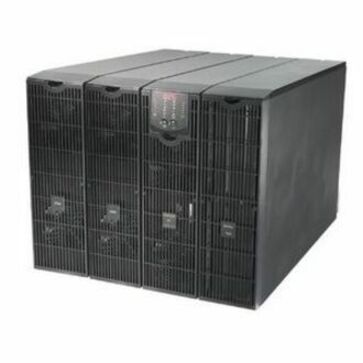

Smart-UPS RT 10kVA Scalable to 10kVA with Two Step-Down Transformer is high performance power protection with scalable runtime for space-constrained computer rooms, voice and data networks, medical labs, and light industrial applications. Featuring double conversion on-line topology, the Smart-UPS RT protects your data by supplying reliable, network-grade power. An unlimited number of matching battery packs can be added to comply with aggressive runtime demands of "always on" business-critical systems. Rack-optimized models are an ideal choice for space constrained environments. Customers looking for extremely tight voltage and frequency regulation, internal bypass, and input power factor correction will find them in the Smart-UPS RT.
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Emergency Power OFF | Yes |
| Input Frequency | 60 Hz |
| Overload Protection | Yes |
| Receptacle Detail | 2 x NEMA L6-30R |
| Receptacle Type | NEMA L6-30R |
| Plug/Connector Type | Hard Wire 3-wire |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Spill-proof/Maintenance-free |
| Input Voltage | 220 V AC |
| Output Voltage | 208 V AC |
| Load Capacity (VA) | 10000 VA |
| Output Frequency | 60 Hz |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 13.20 Minute |
| Waveform Type | Sine Wave |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP Manageable |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower |
| General Features | |
|---|---|
| Bypass Switch | Automatic & Manual |
| Alarm | Overload |
| Manufacturer | Schneider Electric SA |
| Thermal Dissipation | 649.45 W |
| Expansion Slots | |
|---|---|
| Modular Slots | SmartSlot |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 55 dB(A) |
