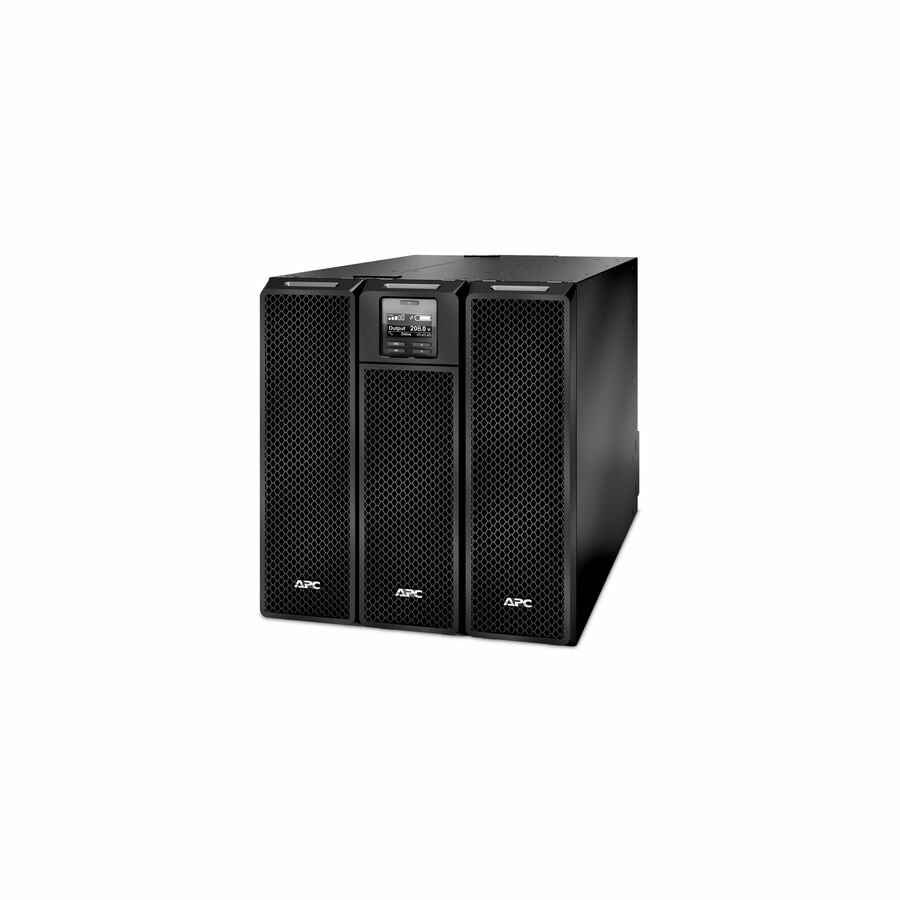

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 8kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 8x NEMA 5-20R, 2x NEMA L6-30R, 6x NEMA L6-20R, 1x NEMA L14-30R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.
- Delivers clean power with zero transfer time for critical or sensitive devices
- SmartSlot for additional communication options
- Embedded Network Management Card for network-based UPS monitoring & management
- Graceful shutdown of physical servers, virtual machines and HCI Clusters
- Add up to 10 external battery packs (SRT192BP2) for extended runtime
- 1-Year Secure Network Management Card subscription included
- Rack/Tower convertible (rail kit SRTRK2 or SRTRK3 sold separately)
- 8kVA/8kW double-conversion on-line pure sine wave tower UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 17 |
| Phase | Single Phase |
| Receptacle Detail | 1 x NEMA L14-30R |
| Receptacle Type | NEMA L14-30R |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 1.50 Hour |
| Input Voltage | 240 V AC |
| Output Voltage | 240 V AC |
| Load Capacity (Watt) | 8000 W |
| Load Capacity (VA) | 8000 VA |
| Backup/Run Time (Full Load) | 5 Minute |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 480 J |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Mounting Location | Front |
| Mounting Preference | No Preference |
| General Features | |
|---|---|
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | Yes |
| REACH free of SVHC | No |
| Reach Compliance Date | 12/10/2025 |
| Single-use Plastic (SUP) Free | No |
| Sustainable Packaging | No |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
