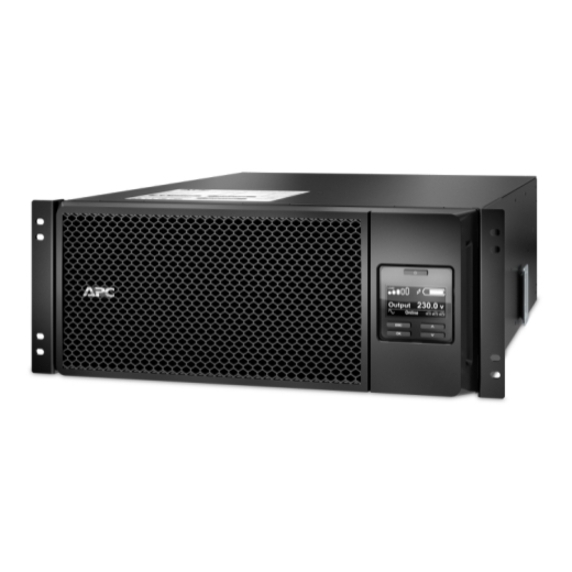

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (1P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
- Delivers clean power with zero transfer time for critical or sensitive devices
- Graceful shutdown of physical servers, virtual machines and HCI Clusters
- SmartSlot for additional communication options
- Embedded Network Management Card for network-based UPS monitoring & management
- Add up to 10 external battery packs (SRT192RMBP) for extended runtime
- 1-Year Secure Network Management Card subscription included
- Rack/Tower convertible (rail kit included)
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Designed for IT applications in controlled Marine environments
- 6kVA/6kW double-conversion on-line pure sine wave 4U rackmount UPS
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 13 |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 1.50 Hour |
| Input Voltage Range | 160 V AC - 275 V AC |
| Input Voltage | 230 V |
| Output Voltage | 230 V AC |
| Load Capacity (Watt) | 6000 W |
| Load Capacity (VA) | 6000 VA |
| Backup/Run Time (Full Load) | 3 Minute |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 480 J |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Mounting Location | Front |
| Rack Height | 4U |
| Mounting Preference | No Preference |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | Yes |
| REACH free of SVHC | No |
| Reach Compliance Date | 12/10/2025 |
| Single-use Plastic (SUP) Free | No |
| Sustainable Packaging | No |
| SCIP Number | 4282bd22-a353-4f82-bb5c-97bbd7f1d1e9 |
| Environmentally Friendly | Yes |
