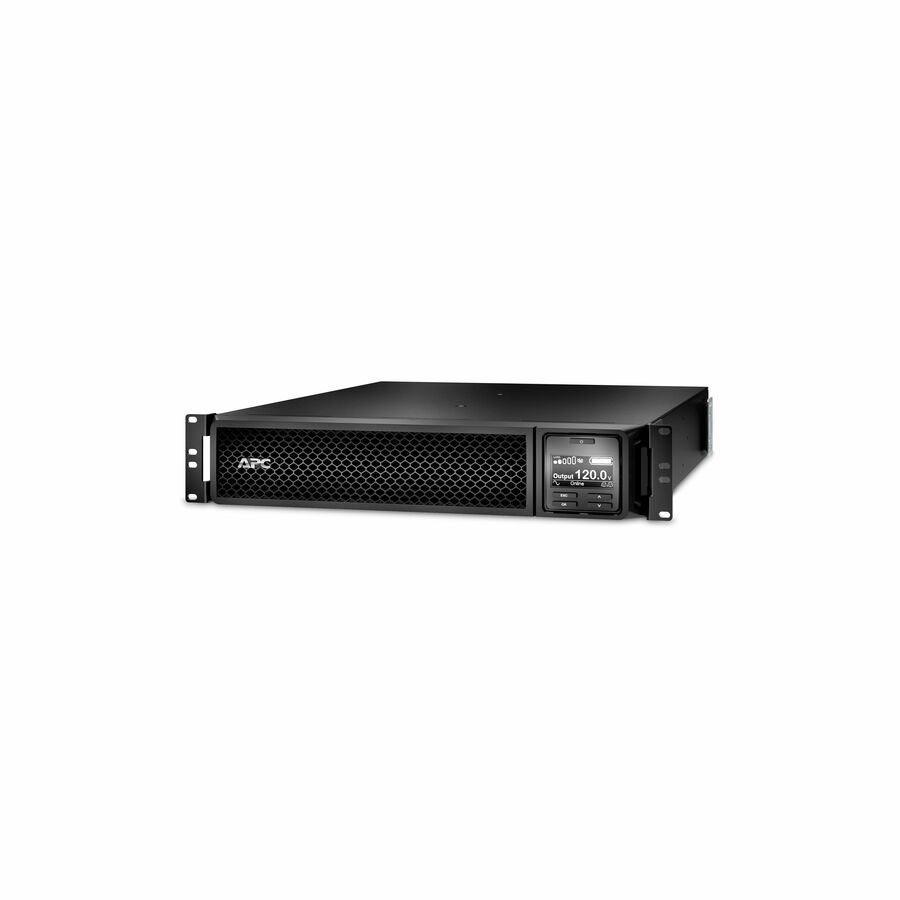

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with 1x NEMA 5-20P input, 6x NEMA 5-20R and 1x NEMA L5-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
- 2200VA/1800W double-conversion on-line pure sine wave 2U rackmount UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/Tower convertible (rail kit included)
- Delivers clean power with zero transfer time for critical or sensitive devices
- Add up to 10 external battery packs (SRT72RMBP) for extended runtime
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Screen / Display | |
|---|---|
| Display | LCD |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 7 |
| Replaceable Battery | Yes |
| Phase | Single Phase |
| Input Frequency | 70 Hz |
| EPO Port | Yes |
| Receptacle Detail | 6 x NEMA 5-20R |
| Receptacle Type | NEMA 5-20P |
| Plug/Connector Type | NEMA 5-20P |
| Battery Life | 5 Year |
| Battery Energy | 0 J |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 3 Hour |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (Watt) | 1800 W |
| Load Capacity (VA) | 2200 VA |
| Output Frequency | 60 Hz |
| DC System Voltage | 72 V DC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 340 J |
| Networking & Connectivity | |
|---|---|
| Network Management | SmartSlot |
| USB Ports | |
|---|---|
| USB | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Mounting Location | Front |
| Rack Height | 2U |
| Mounting Preference | Lower |
| General Features | |
|---|---|
| Alarm | Yes |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Thermal Dissipation | 156.79 W |
| Cables | |
|---|---|
| Cord Length | 10.01 ft |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Certificati | ENERGY STAR 2.0 |
| Product Take Back Program | Yes |
| REACH free of SVHC | No |
| Reach Compliance Date | 12/10/2025 |
| Single-use Plastic (SUP) Free | No |
| Sustainable Packaging | No |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 122°F (50°C) |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Sound Emission (A-Weighted) | 55 dB(A) |
