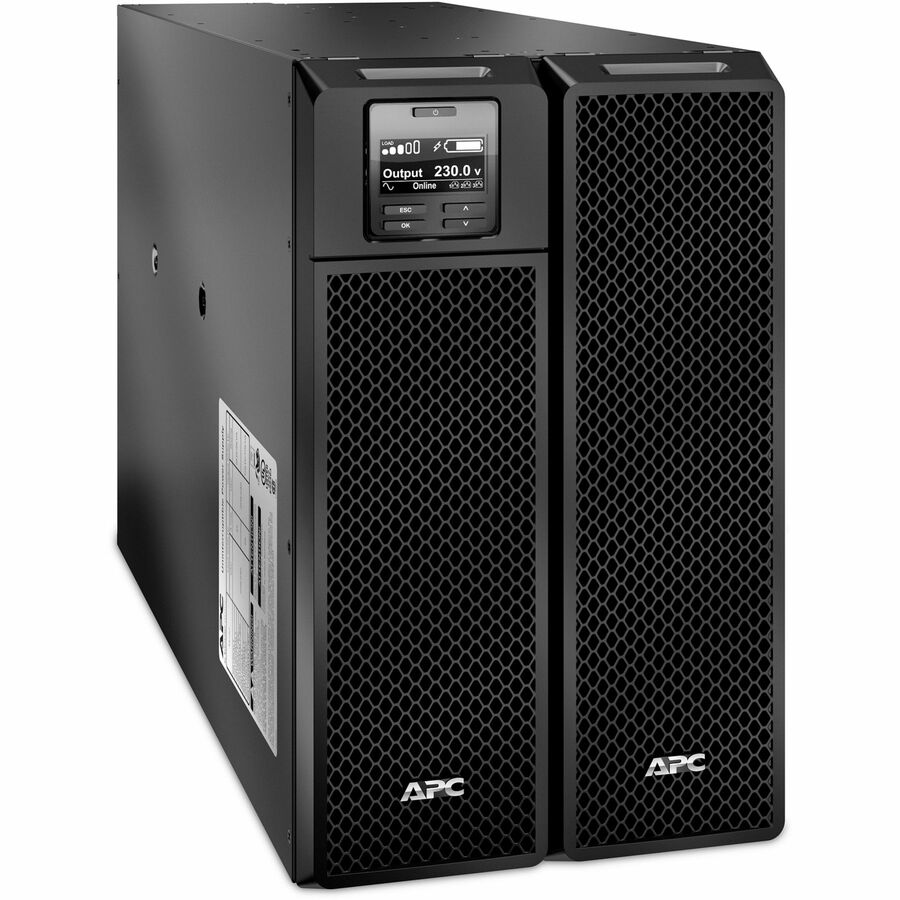

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E)/5-wire(3P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 3x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.
- Delivers clean power with zero transfer time for critical or sensitive devices
- SmartSlot for additional communication options
- Graceful shutdown of physical servers, virtual machines and HCI Clusters
- Embedded Network Management Card for network-based UPS monitoring & management
- Add up to 10 external battery packs (SRT192BP2) for extended runtime
- 1-Year Secure Network Management Card subscription included
- Rack/Tower convertible (rail kit SRTRK2 or SRTRK3 sold separately)
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- 10kVA/10kW double-conversion on-line pure sine wave tower UPS
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Battery Characteristics | Maintenance-free , Sealed , Spill-proof |
| Number of Battery & Surge Out | 25 |
| Emergency Power OFF | Yes |
| Phase | Single Phase/Three Phase |
| Circuit Breaker | Yes |
| Receptacle Detail | 4 x IEC 60320 C19 |
| Battery Chemistry | Lead Acid |
| Number of Batteries | 2 |
| Typical Battery Recharge Time | 1.50 Hour |
| Input Voltage | 415 V AC |
| Output Voltage | 230 V AC |
| Load Capacity (Watt) | 10 kW |
| Load Capacity (VA) | 10000 VA |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 12 Minute |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 480 J |
| USB Ports | |
|---|---|
| USB | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Mounting Location | Front |
| Mounting Preference | No Preference |
| General Features | |
|---|---|
| Bypass Switch | Automatic & Manual |
| Hot Swappable | Yes |
| Alarm | Battery Failure |
| Protection Type | Lightning |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Thermal Dissipation | 586.73 W |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Compliance & Certification | |
|---|---|
| Mercury Free | Yes |
| Product Take Back Program | Yes |
| REACH free of SVHC | No |
| Reach Compliance Date | 12/10/2025 |
| Single-use Plastic (SUP) Free | No |
| Sustainable Packaging | No |
| SCIP Number | 409c68a1-39a6-4e5f-b080-12befe783ad8 |
| Maximum Operating Temperature | 104°F (40°C) |
| Environmentally Friendly | Yes |
| Sound Emission | 55 dB |
