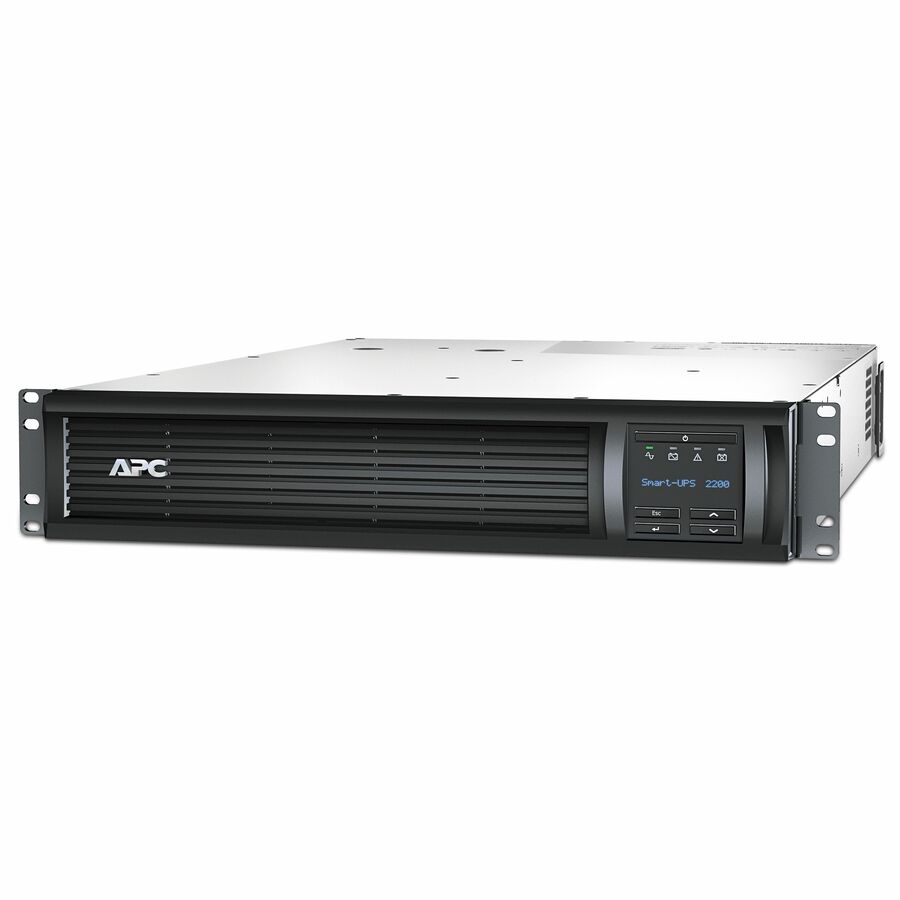

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 10x NEMA 5-15R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
- 2200VA/1980W line interactive pure sine wave 2U rackmount UPS
- Ideal for servers, storage, networking, business VoIP, retail POS
- Automatic Voltage Regulation helps correct utility voltage
- Graceful shutdown using serial or USB cables via PowerChute Business Edition
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 10 |
| Input Frequency | 60 Hz |
| AVR | Yes |
| Receptacle Detail | 10 x NEMA 5-15R |
| Receptacle Type | Schuko CEE 7/EU1-16P |
| Plug/Connector Type | Italian CEI 23-16 |
| Battery Life | 5 Year |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 4 Hour |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Load Capacity (Watt) | 1980 W |
| Load Capacity (VA) | 2200 VA |
| Output Frequency | 60 Hz |
| Transfer Time | 10 ms |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1366 J |
| USB Ports | |
|---|---|
| USB (HID Compliant) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Mounting Location | Front |
| Rack Height | 2U |
| Mounting Preference | No Preference |
| General Features | |
|---|---|
| Alarm | Alarm |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Cables | |
|---|---|
| Cord Length | 8.01 ft |
| Compliance & Certification | |
|---|---|
| Mercury Free | Yes |
| Product Take Back Program | Yes |
| REACH free of SVHC | No |
| Single-use Plastic (SUP) Free | No |
| Sustainable Packaging | No |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 131°F (55°C) |
| Storage Relative Humidity | 0% - 95% |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Sound Emission (A-Weighted) | 55 dB(A) |
