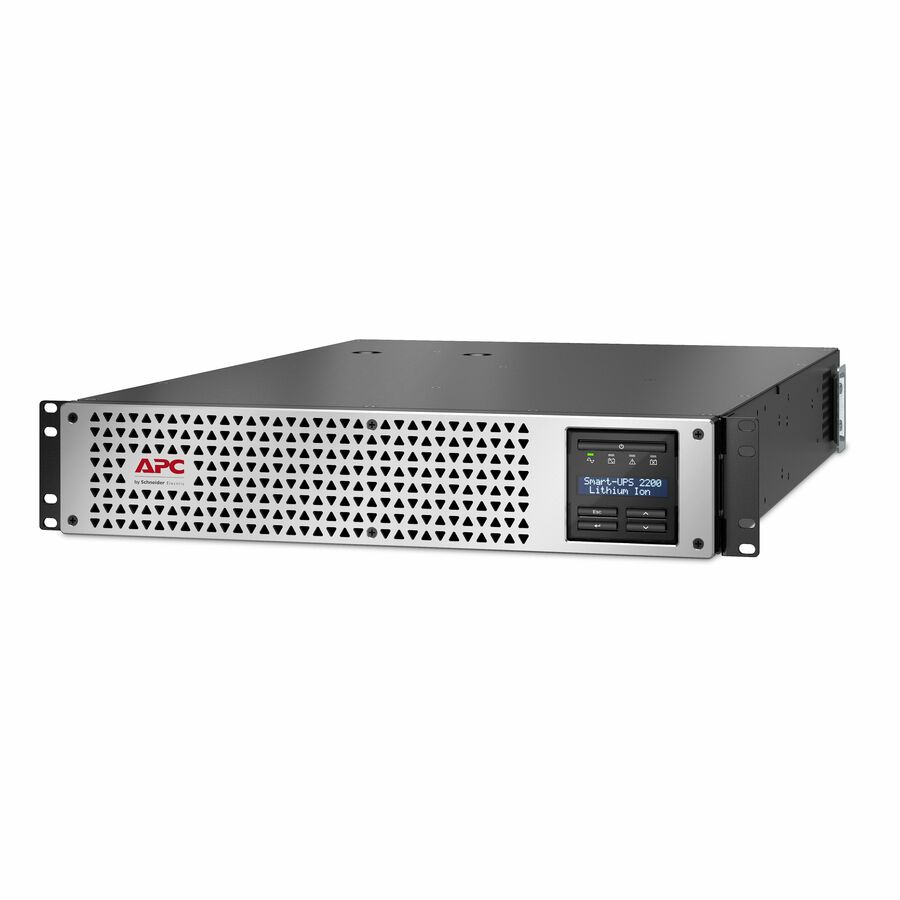

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA L5-30P input, 6 NEMA 5-20R and 1 NEMA L5-20R outlets. It offers remote cloud-based UPS monitoring that is accessible from any internet connected device. Feature availability varies with terms of use. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
- 2200VA/1920W line interactive pure sine wave 2U rackmount UPS
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Lithium-ion battery minimizes the need to replace battery during the lifetime of UPS
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Peace of mind with a 5-year warranty on UPS and battery
- 1x NEMA L5-20R in addition to 6x NEMA 5-20R
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Screen / Display | |
|---|---|
| Display | LCD/LED |
| Power & Battery | |
|---|---|
| Phase | Single Phase |
| Input Frequency | 60 Hz |
| AVR | Yes |
| EPO Port | Yes |
| Receptacle Detail | 6 x NEMA 5-20R |
| Receptacle Type | NEMA L5-20P |
| Plug/Connector Type | NEMA L5-20P |
| Battery Life | 10 Year |
| Battery Energy | 1209.6 kJ |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Number of Batteries | 1 |
| Typical Battery Recharge Time | 2 Hour |
| Input Voltage Range | 82 V AC - 143 V AC |
| Input Voltage | 110 V AC |
| Output Voltage | 110 V AC |
| Load Capacity (Watt) | 1920 W |
| Load Capacity (VA) | 1920 VA |
| Output Frequency | 60 Hz |
| Backup/Run Time (Full Load) | 7.80 Minute |
| Backup/Run Time (Half Load) | 16.40 Minute |
| Transfer Time | 10 ms |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 530 J |
| USB Ports | |
|---|---|
| USB | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Mounting Preference | Lower |
| General Features | |
|---|---|
| Alarm | Overload |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Thermal Dissipation | 63.01 W |
| Cables | |
|---|---|
| Cord Length | 8 ft |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | Yes |
| Optimized Energy Efficiency | Yes |
| REACH free of SVHC | No |
| Reach Compliance Date | 12/10/2025 |
| Single-use Plastic (SUP) Free | No |
| Sustainable Packaging | No |
| SCIP Number | 8c493f2b-82c6-495f-a54a-f7d594e2b537 |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Sound Emission | 55 dB |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $150000 Lifetime |
