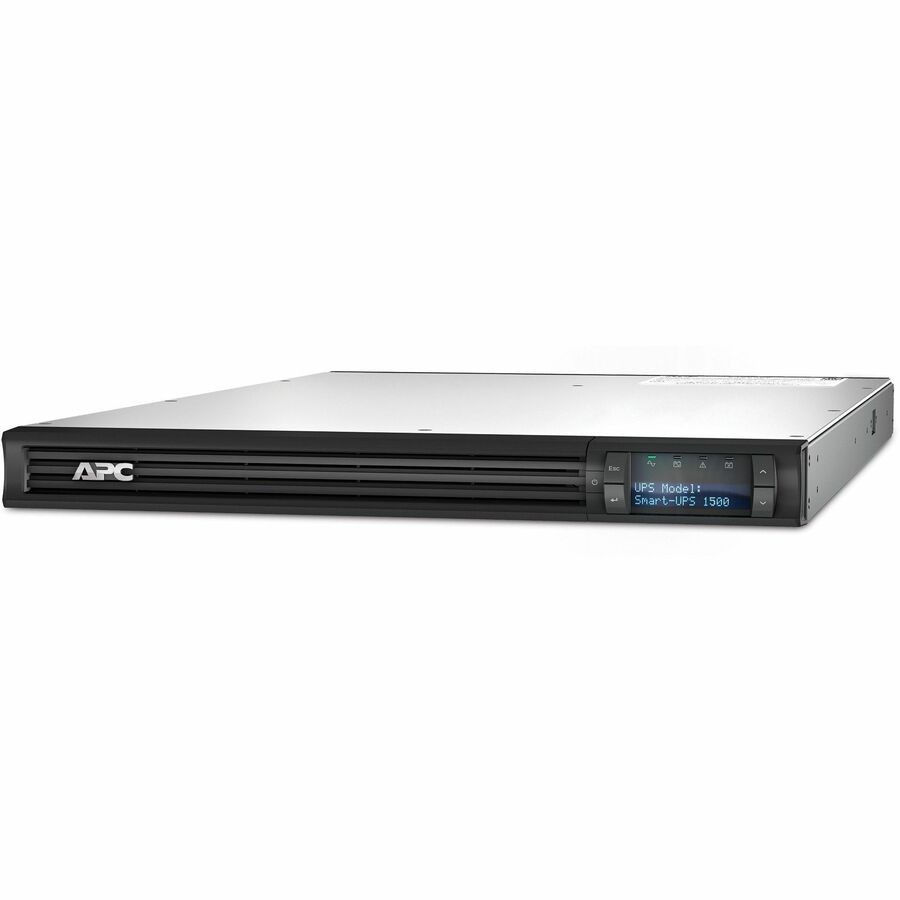

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive 1U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 4 IEC 320 C13 outlets, and 2 IEC jumper cables. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Automatic Voltage Regulation helps correct utility voltage
- Ideal for servers, storage, network closets, business VoIP and retail POS
- 1500VA/1000W line interactive pure sine wave 1U rackmount UPS
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Battery Characteristics | Maintenance-free , Spill-proof |
| Number of Battery & Surge Out | 6 |
| Circuit Breaker | Yes |
| Receptacle Detail | 4 x IEC 320-C13 |
| Receptacle Type | IEC 60320 C13 |
| Plug/Connector Type | IEC 320-C14 |
| Number of Battery & Surge Outlets | 6 |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 4 Hour |
| Input Voltage | 230 V |
| Output Voltage | 230 V AC |
| Input Current | 12 A |
| Load Capacity (Watt) | 1000 W |
| Load Capacity (VA) | 1500 VA |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 17 Minute |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 540 J |
| USB Ports | |
|---|---|
| USB | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Mounting Location | Front |
| Rack Height | 1U |
| Mounting Preference | Lower |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Alarm | Configurable Delay |
| Protection Type | Lightning |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Thermal Dissipation | 34 W |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Cables | |
|---|---|
| Cord Length | 8 ft |
| Compliance & Certification | |
|---|---|
| Mercury Free | Yes |
| Product Take Back Program | Yes |
| Optimized Energy Efficiency | Yes |
| REACH free of SVHC | No |
| Maximum Operating Temperature | 113°F (45°C) |
| Environmentally Friendly | Yes |
| Sound Emission (A-Weighted) | 46 dB(A) |
