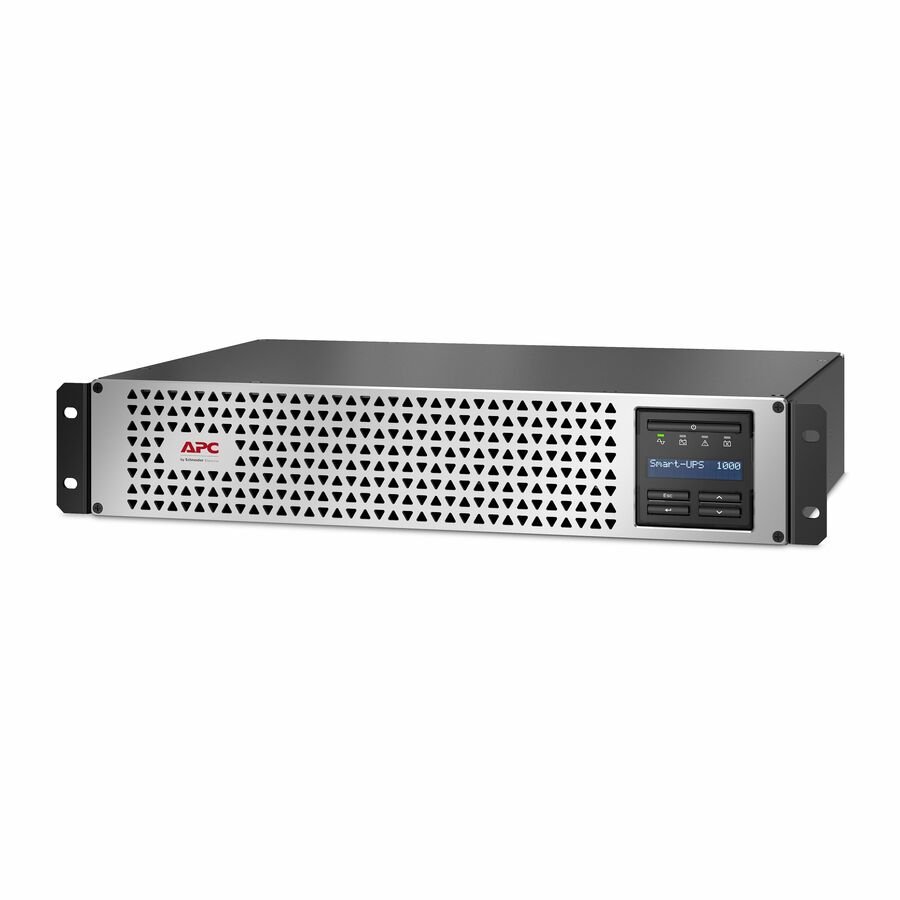

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1000VA line interactive 2U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 6 IEC 320 C13 outlets. This rackmount UPS is tower convertible with the mounting stabilizing feet (SMTL2USF sold separately). It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
- 1000VA/800W line interactive pure sine wave 2U rackmount UPS
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Lithium-ion battery minimizes the need to replace battery during the lifetime of UPS
- Short depth UPS provides extra space for cable management
- Tower convertible with stabilizing feet (sold separately)
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Peace of mind with a 5-year warranty on UPS and battery
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 6 |
| Replaceable Battery | Yes |
| Phase | Single Phase |
| Input Frequency | 60 Hz |
| Overload Protection | Yes |
| AVR | Yes |
| Receptacle Detail | 6 x IEC 60320 C13 |
| Receptacle Type | IEC Jumper |
| Plug/Connector Type | IEC 60320 C14 |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Typical Battery Recharge Time | 3 Hour |
| Input Voltage Range | 160 V AC - 280 V AC |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Load Capacity (Watt) | 800 W |
| Load Capacity (VA) | 1000 VA |
| Output Frequency | 60 Hz |
| Backup/Run Time (Full Load) | 8 Minute |
| Backup/Run Time (Half Load) | 19 Minute |
| Transfer Time | 6 ms |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 680 J |
| USB Ports | |
|---|---|
| USB (HID Compliant) Port | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Mounting Preference | Lower |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Alarm | Configurable Delay |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Thermal Dissipation | 20.51 W |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | Yes |
| Optimized Energy Efficiency | Yes |
| REACH free of SVHC | No |
| Reach Compliance Date | 12/10/2025 |
| Single-use Plastic (SUP) Free | No |
| Sustainable Packaging | No |
| SCIP Number | 8519b6fb-f7a9-44f8-be44-5dee68362126 |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 14°F (-10°C) - 104°F (40°C) |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 25000 ft |
| Environmentally Friendly | Yes |
| Sound Emission (A-Weighted) | 41 dB(A) |
