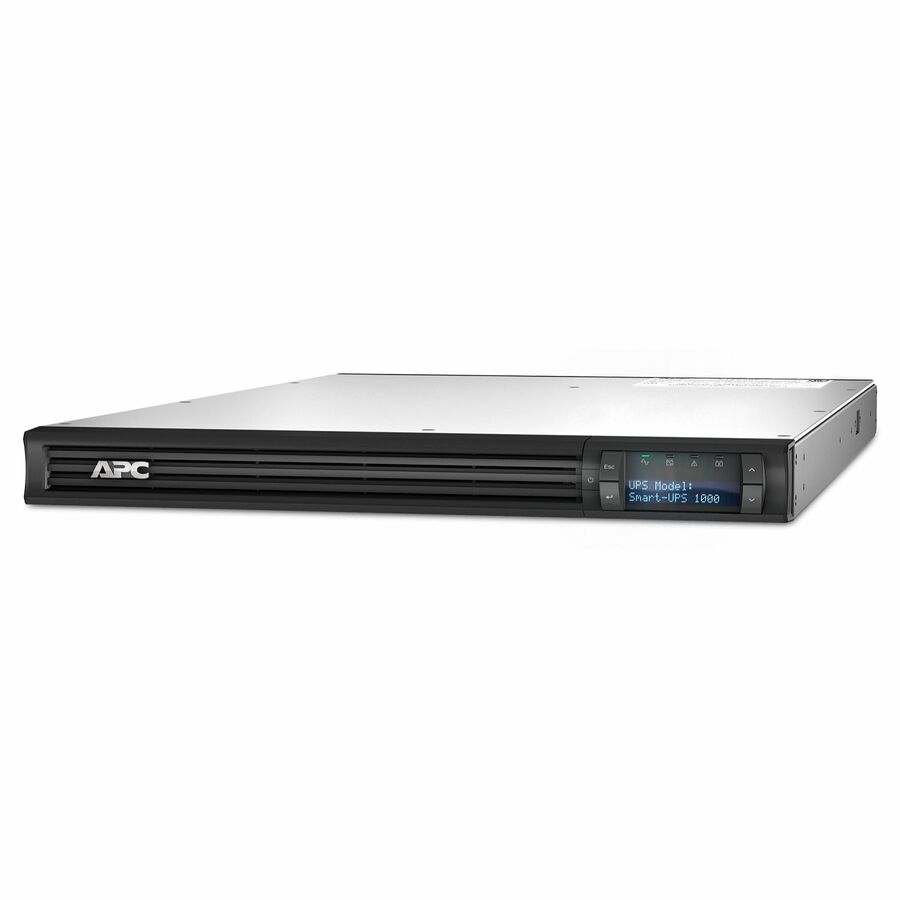

This APC Smart-UPS is designed for small and medium businesses to maintain business uptime and continuity The 1000VA line interactive 1U rackmount provides pure sine wave power with a higher power factor to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4x NEMA 5-15R outlets. It comes with PowerChute Software, which provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It provides surge protection against lightning strikes, power sags, brownouts, and surges. The SMT UPS has a 3-year warranty, and the built-in lead acid battery has a 2-year warranty. This UPS includes intelligent battery management with replacement suggestions, temperature-adjusted charging, self-tests, and battery disconnect notifications.
- Up to 25% more power (higher PF) & 23% depth reduction (20 in.)
- 1U short depth, rack-mountable design
- LCD status display
- AVR double boost and trim
- USB port for communication
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Screen / Display | |
|---|---|
| Display | LCD |
| Power & Battery | |
|---|---|
| Replaceable Battery | Yes |
| Phase | Single Phase |
| Input Frequency | 60 Hz |
| AVR | Yes |
| Receptacle Detail | 4 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15P |
| Plug/Connector Type | NEMA 5-15P |
| Battery Life | 5 Year |
| Battery Energy | 604.8 kJ |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 5 Hour |
| Input Voltage | 220 V AC |
| Output Voltage | 120 V AC |
| Input Current | 8.33 A |
| Load Capacity (Watt) | 800 W |
| Load Capacity (VA) | 1000 VA |
| Output Frequency | 60 Hz |
| Backup/Run Time (Full Load) | 1.55 Minute |
| Backup/Run Time (Half Load) | 9.45 Minute |
| Transfer Time | 8 ms |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 540 J |
| USB Ports | |
|---|---|
| USB | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Mounting Location | Front |
| Rack Height | 1U |
| Mounting Preference | Lower |
| General Features | |
|---|---|
| Alarm | Configurable Delay |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Thermal Dissipation | 25.79 W |
| Cables | |
|---|---|
| Cord Length | 8 ft |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | Yes |
| Optimized Energy Efficiency | Yes |
| REACH free of SVHC | No |
| Reach Compliance Date | 12/10/2025 |
| Single-use Plastic (SUP) Free | No |
| Sustainable Packaging | No |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Storage Relative Humidity | 95% |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Environmentally Friendly | Yes |
| Sound Emission (A-Weighted) | 46 dB(A) |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $150000 Lifetime |
