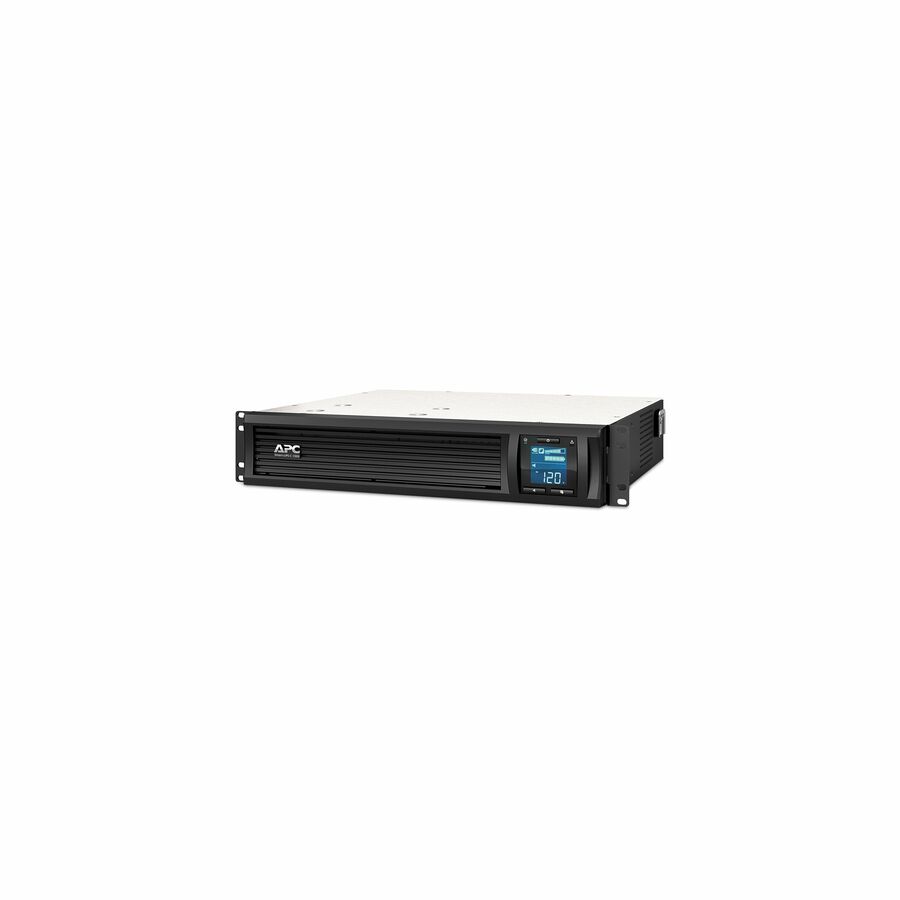

APC Smart-UPS C, Line Interactive, 1000VA, Rackmount 2U, 120V, 6x NEMA 5-15R outlets, SmartConnect port, USB and Serial communication, AVR,Graphic LCD

816.16 816.16
816.16

816.16 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Number of Battery & Surge Out
  • Directly Connected Equipment
  • RoHS Exemption Information
  • Environmental Profile Availab
  • Product Take Back Program
  • End of Life Manual Availabili
  • Optimized Energy Efficiency
  • REACH free of SVHC
  • WEEE Statement
  • REACH Declaration URL
  • EU RoHS Declaration URL
  • Energy Star URL
  • Hot Swappable
  • Network (RJ-45)
  • Cord Length
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Form Factor
  • Product Color
  • Color Family
  • Mounting Location
  • Rack Height
  • Mounting Preference
  • Battery Chemistry
  • Typical Battery Recharge Time
  • Input Voltage Range
  • Input Voltage
  • Output Voltage
  • Energy Star
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • Packaged Quantity
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Line
  • Application/Usage
  • Manufacturer Website Address
  • For Country/Region
  • Load Capacity (Watt)
  • Load Capacity (VA)
  • Backup/Run Time (Full Load)
  • Transfer Time
  • Waveform Type
  • Surge Energy Rating
Terms and Conditions
14-day money-back guarantee
Shipping: 1-6 Business Days

This APC Smart-UPS is designed for small to medium business owners to maintain business uptime and continuity. This 1000VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The UPS comes with NEMA 5-15P input and 6x NEMA 5-15R outlets. This UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS C has an intuitive graphic LCD interface. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. This line interactive UPS operates in green mode for high operating efficiency. Connect to either monitoring software using the Port on the back of the device. The SMC has a 2-year warranty, and comes with a built-in lead-acid battery. This UPS provides surge protection against lightning strikes, power sags, brownouts and surges. This is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. This 600 watt UPS offers a green mode to ensure you are operating at the highest level of efficiency while it's smart battery management maximizes performance. Automatic Voltage Regulation (AVR) adjusts voltages ensuring reliable power while preserving battery life. Predictive battery management provides an estimated date of when battery replacement is recommended. UPS, Documentation CD, Installation guide, Rack mounting brackets, USB cable.

More from the Manufacturer

  • Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
  • Cloud-based remote power monitoring via SmartConnect Ethernet Port
  • Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
  • Ideal for entry-level servers, networks, retail POS, and business VOIP
  • 1000VA/600W line interactive pure sine wave 2U rackmount UPS
Brand
Brand Schneider Electric SA
Power & Battery
Number of Battery & Surge Out 6
Receptacle Detail 6 x NEMA 5-15R
Receptacle Type NEMA 5-15P
Plug/Connector Type NEMA 5-15P
Battery Chemistry Lead Acid
Typical Battery Recharge Time 3 Hour
Input Voltage Range 93 V AC - 130 V AC
Input Voltage 120 V AC
Output Voltage 120 V AC
Load Capacity (Watt) 600 W
Load Capacity (VA) 1000 VA
Backup/Run Time (Full Load) 9.20 Minute
Transfer Time 10 ms
Waveform Type Sine Wave
Surge Energy Rating 680 J
Ethernet Port
Network (RJ-45) Yes
Size / Dimensions
Form Factor Rack-mountable
Mounting Location Front
Rack Height 2U
Mounting Preference Lower
General Features
Hot Swappable Yes
Manufacturer Schneider Electric SA
For Country/Region United States
Cables
Cord Length 8 ft
Compliance & Certification
Product Take Back Program Yes
Optimized Energy Efficiency Yes
REACH free of SVHC No
Energy Star Yes
Environmentally Friendly Yes
Warranty & Support
Directly Connected Equipment $150000 Lifetime
