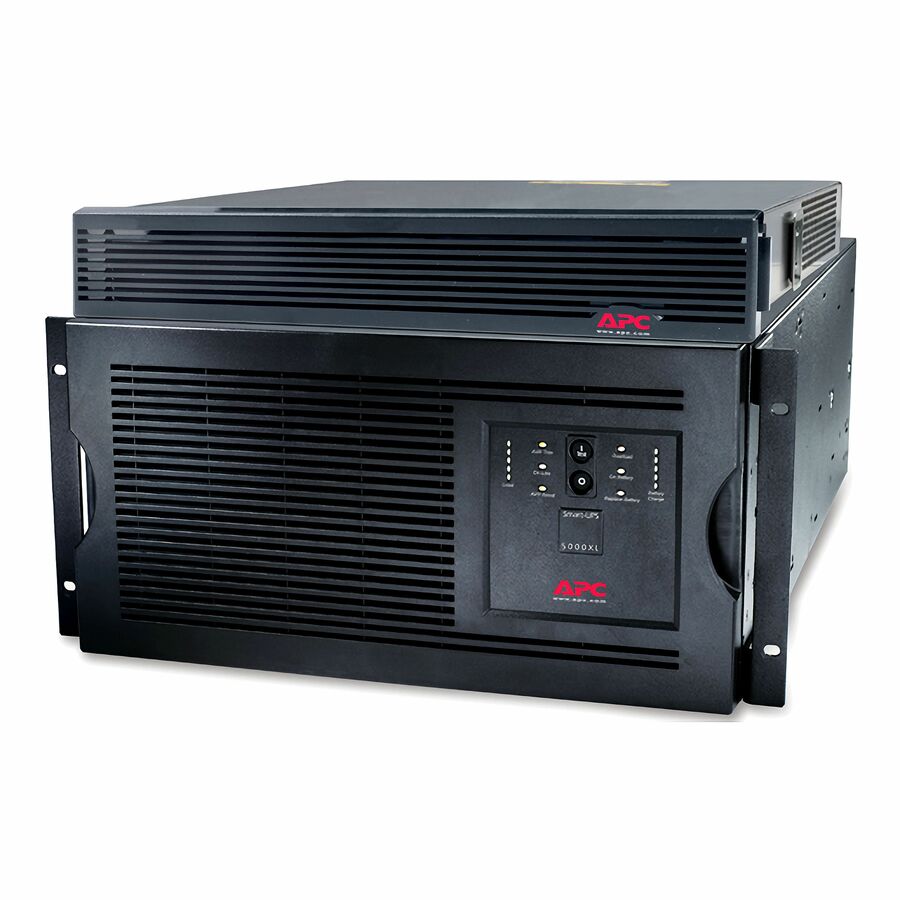

APC Smart-UPS 5000VA RM w/Transformer, 208V input and 120/208V Output

$ 7,614.99 $ 7,614.99
$ 7,614.99

$ 7,614.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Number of Battery & Surge Out
  • Emergency Power OFF
  • Directly Connected Equipment
  • RoHS Exemption Information
  • Environmental Profile Availab
  • Product Take Back Program
  • End of Life Manual Availabili
  • REACH free of SVHC
  • REACH Declaration URL
  • EU RoHS Declaration URL
  • Network Management
  • Phase
  • Dataline Protection
  • Network (RJ-45)
  • Cord Length
  • Total Number of Expansion Slots
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Form Factor
  • Product Color
  • Color Family
  • Mounting Location
  • Rack Height
  • Mounting Preference
  • Battery Chemistry
  • Battery Characteristics
  • Typical Battery Recharge Time
  • Input Voltage
  • Output Voltage
  • Software Included
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Line
  • Manufacturer Website Address
  • For Country/Region
  • Load Capacity (Watt)
  • Load Capacity (VA)
  • Backup/Run Time (Full Load)
  • Backup/Run Time (Half Load)
  • Waveform Type
  • Surge Energy Rating
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
User-Manual PDF

The APC Smart-UPS includes a transformer and supports 208V input and 120 and 208V output. It has a power capacity of 5000VA and 4000 watts. The UPS features multiple output connections, including 12 NEMA 5-20R, 2 NEMA L6-20R, and 1 NEMA L6-30R. It uses a lead-acid battery.

  • 2 years repair or replace, optional on-site warranties available, optional extended warranties available
  • Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • Protects connected loads from surges, spikes, lightning, and other power disturbances.
  • Gives higher application availability by correcting low and high voltage conditions without using the battery.
  • APC Smart-UPS 5000VA RM w/Transformer
Brand
Brand Schneider Electric SA
Power & Battery
Battery Characteristics Maintenance-free , Spill-proof
Number of Battery & Surge Out 15
Emergency Power OFF Optional
Phase Single Phase
Dataline Protection RJ-45
Receptacle Detail 2 x NEMA L6-20R
Receptacle Type NEMA L6-30P
Plug/Connector Type NEMA L6-30P
Battery Chemistry Lead Acid
Typical Battery Recharge Time 3 Hour
Input Voltage 208 V AC
Output Voltage 208 V AC
Load Capacity (Watt) 4000 W
Load Capacity (VA) 5000 VA
Backup/Run Time (Full Load) 9.40 Minute
Backup/Run Time (Half Load) 26.70 Minute
Waveform Type Sine Wave
Surge Energy Rating 1020 J
Networking & Connectivity
Network Management SNMP Manageable
Ethernet Port
Network (RJ-45) Yes
Size / Dimensions
Form Factor Rack-mountable
Mounting Location Front
Rack Height 7U
Mounting Preference Lower
General Features
Manufacturer Schneider Electric SA
For Country/Region United States
Expansion Slots
Total Number of Expansion Slots 1
Cables
Cord Length 8 ft
Compliance & Certification
Product Take Back Program Yes
REACH free of SVHC No
Environmentally Friendly Yes
Warranty & Support
Directly Connected Equipment $150000 Lifetime
