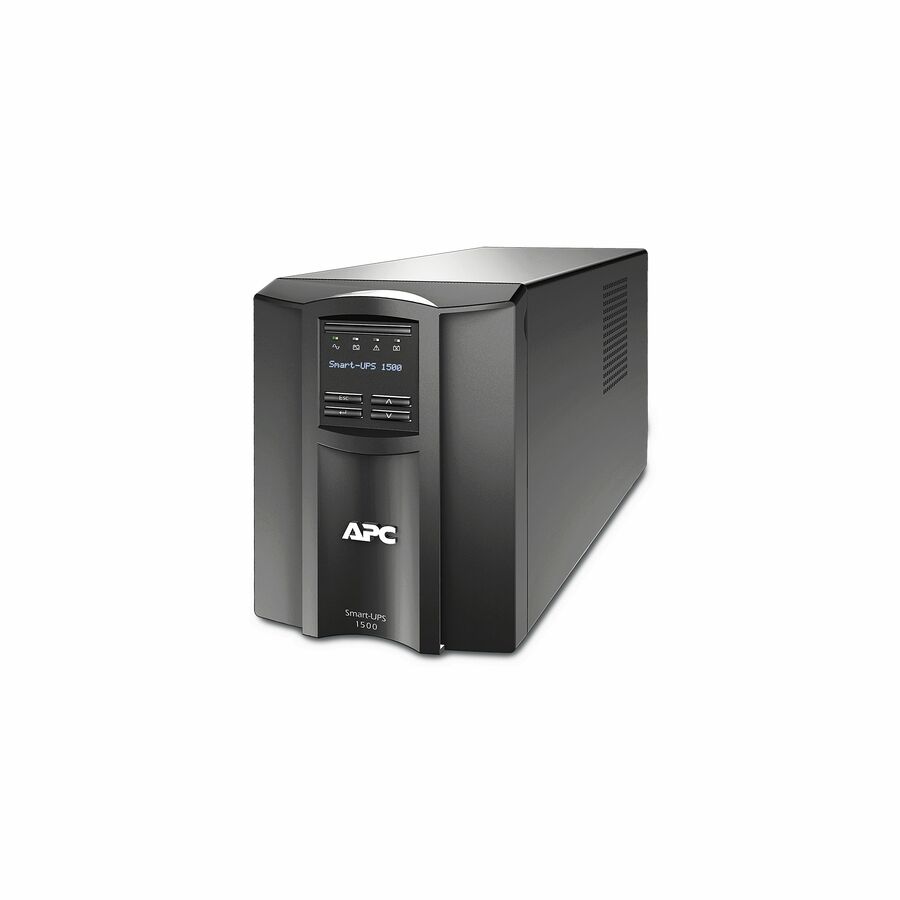

It is a Smart-UPS with a power capacity of 1440VA and 1000W. It is used for shipboard applications and operates at a nominal voltage of 120V. The UPS includes 8 NEMA 5-15R outlets and supports hot-swappable batteries for continuous operation. It is compliant with various safety and environmental standards, ensuring reliable and safe operation in IT and data center environments.
- Provides 1440VA of power capacity
- Energy efficieny feature reduces operational costs
- Features an intuitive LCD display for easy monitoring and management
- Designed for shipboard applications
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 8 |
| Phase | Single Phase |
| Input Frequency | 60 Hz |
| Receptacle Detail | 8 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15P |
| Plug/Connector Type | NEMA 5-15P |
| Battery Life | 5 Year |
| Battery Chemistry | Lead Acid |
| Number of Batteries | 1 |
| Typical Battery Recharge Time | 3 Hour |
| Input Voltage Range | 82 V AC - 144 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (Watt) | 1000 W |
| Load Capacity (VA) | 1440 VA |
| Output Frequency | 60 Hz |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 17 Minute |
| Transfer Time | 10 ms |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 693 J |
| USB Ports | |
|---|---|
| USB (HID Compliant) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower |
| Mounting Location | Front |
| Mounting Preference | No Preference |
| General Features | |
|---|---|
| Alarm | Alarm |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Thermal Dissipation | 65.94 W |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | Yes |
| REACH free of SVHC | No |
| Reach Compliance Date | 12/10/2025 |
| Single-use Plastic (SUP) Free | No |
| Sustainable Packaging | No |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 131°F (55°C) |
| Storage Relative Humidity | 0% - 95% |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Sound Emission (A-Weighted) | 45 dB(A) |
