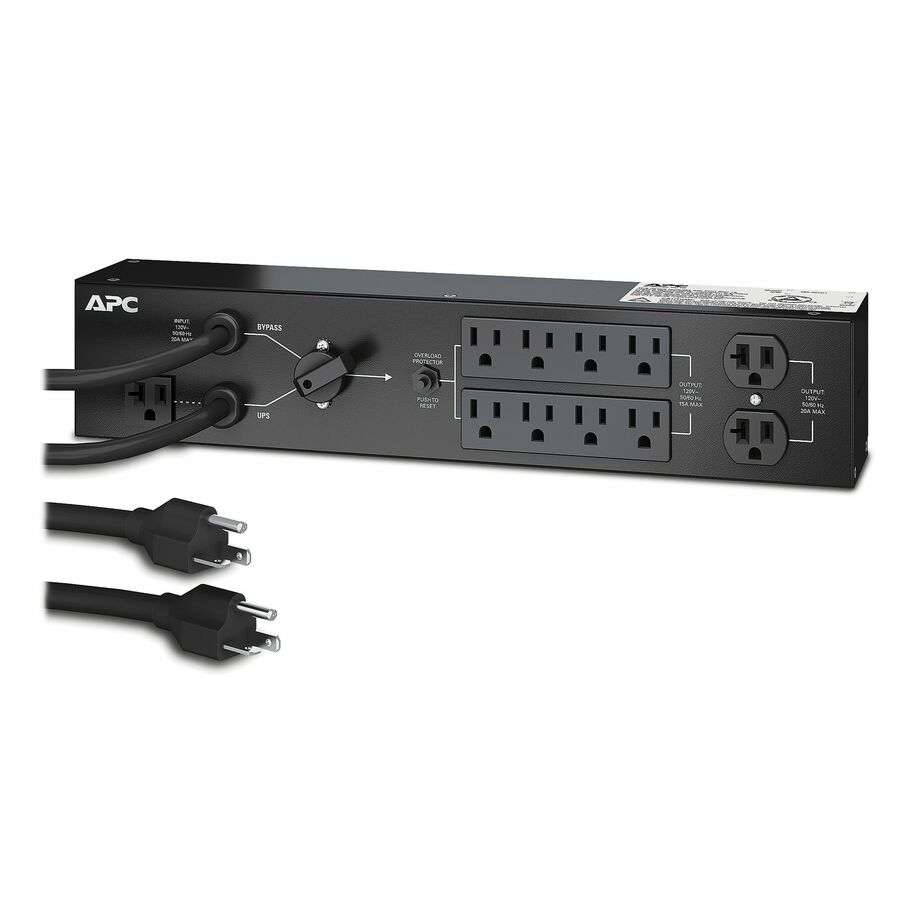

The APC Service Bypass Panel supports output voltage of 120V. It includes 8 NEMA 5-15R and 2 5-20R outlets. It features a 2U rack-mount design and is rack mountable. It includes rack mounting brackets and a user manual.
- Includes Rack mounting brackets & User manual
- 2 years repair or replace warranty
- Bypass/UPS switch allows switching the supply to the load b/w the incoming supply & UPS, to isolate UPS for maintenance
- Designed to work with the world's most popular network and server UPS
- APC SERVICE BYPASS PDU
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Receptacle Detail | 6 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | NEMA 5-20P |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Power Rating (VA) | 2200 VA |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Rack Height | 2U |
| Mounting Preference | No Preference |
| Appearance | |
|---|---|
| Placement | Front |
| General Features | |
|---|---|
| Protection Type | Overload Protection |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Cables | |
|---|---|
| Cord Length | 7.87 ft |
| Compliance & Certification | |
|---|---|
| Mercury Free | Yes |
| Product Take Back Program | Yes |
| REACH free of SVHC | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Compliance Date | 12/10/2025 |
| Single-use Plastic (SUP) Free | No |
| Sustainable Packaging | No |
| SCIP Number | 31346aed-552c-4a16-81d9-e683a383b6da |
| Packaging Contains Recycled C | Yes |
| Environmentally Friendly | Yes |
| Packaging & Origin | |
|---|---|
| Number of Cord/Cable | 1 |
| Brand | Schneider Electric SA |
| UPC/GTIN | 731304266754 |
| MPN | SBP2200RM |
| Unit Count | 1 Units |
| Warranty | 2 Year |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
| Customer Reviews | 5.0 (1) |
APC SERVICE BYPASS PDU, 120V 20AMP W/ (8) NEMA 5-15R AND (2) 5-20R - NEMA 5-20P - 2 x NEMA 5-20R, 6 x NEMA 5-15R - 120 V - 2200 W - Overload Protection - 8 ft Cord Length - 2U - Rack-mountable
