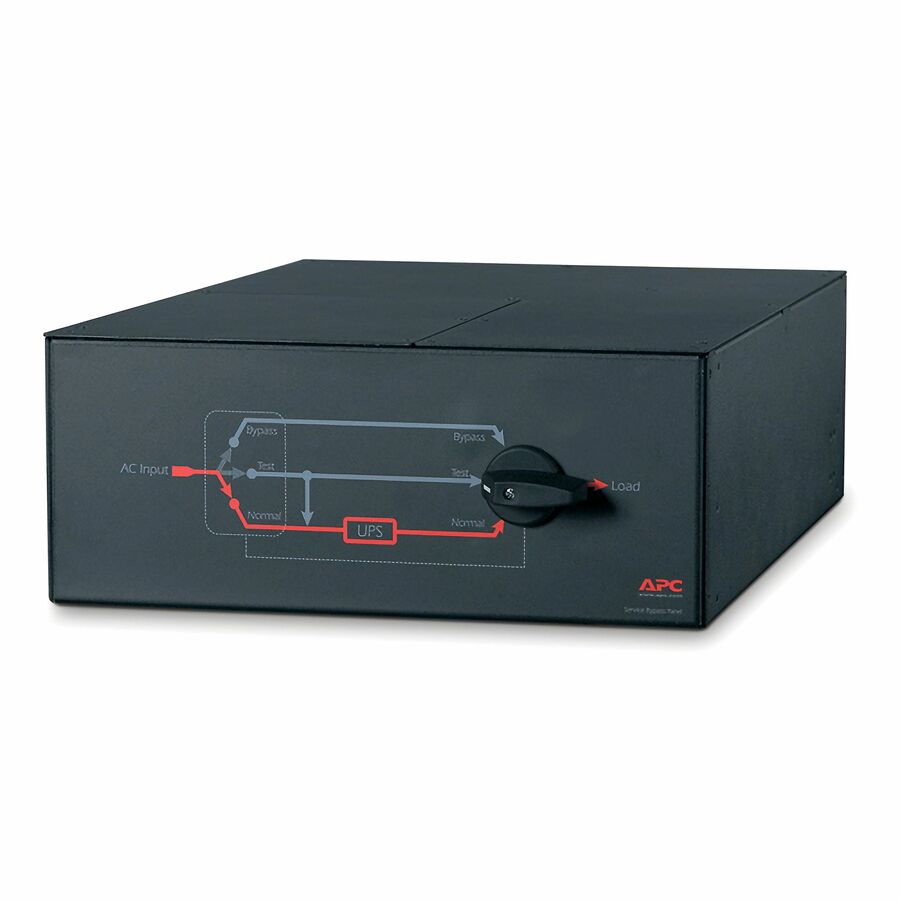

The APC Service Bypass Panel support voltage of 200 and 208 and 240V. It includes 3 NEMA L6-30R and 3 NEMA L6-20R outlets. It features a 4U rack-mount design and is rack mountable. The unit includes rack mounting brackets, user manual, and installation guide.
- Ensures secure and stable hardwired connections
- Features a bypass switch for uninterrupted maintenance
- Equipped with 3 L6-30R and 3 L6-20R output connectors for flexible power distribution
- Supports up to 100A, ideal for high-demand environments
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Receptacles | 3 x NEMA L6-30R |
| Plug/Connector Type | Hard Wire 3-wire |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Current | 100 A |
| Load Capacity (VA) | 20 kW |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Mounting Location | Front |
| Rack Height | 4U |
| Mounting Preference | Lower |
| General Features | |
|---|---|
| Protection Type | Overload |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | Yes |
| Environmentally Friendly | Yes |
