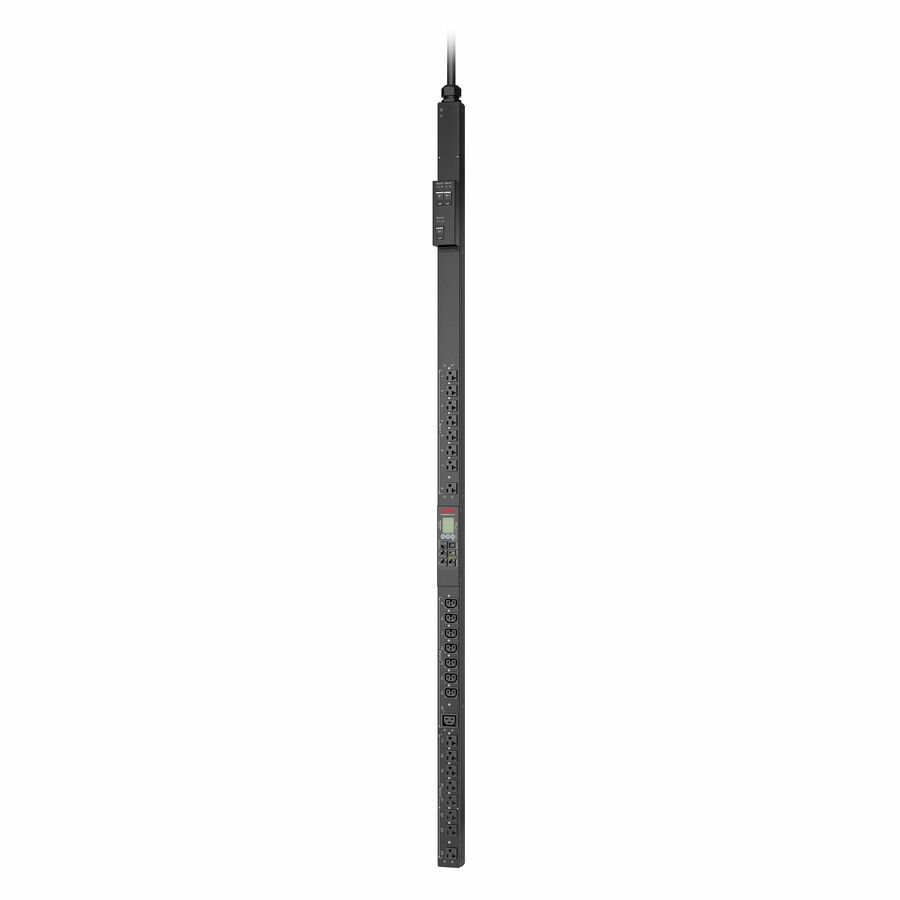

It is a switched rack PDU with a maximum current capacity of 30A and an input voltage of 120 and 208V. It includes 16 NEMA 5-20R outlets, 7 C13 and C15 outlets, and 1 C19 and C21 outlet, connected via an NEMA L14-30 plug. The PDU is designed for ZeroU mounting.
- It can handle a maximum power capacity of 6.2kW, suitable for various applications
- Extensive connectivity options
- Designed for ZeroU mounting, it saves rack space and facilitates better cable management
- Supports remote monitoring and control, allowing for efficient power management
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Power Rating (Watt) | 5000 W |
| PDU Type | Switched |
| Receptacle Detail | 16 x NEMA 5-20R |
| Receptacle Type | NEMA 5-20R |
| Plug/Connector Type | NEMA L14-30P |
| Input Voltage | 208 V |
| Output Voltage | 208 V AC |
| Input Current | 30 A |
| Power Rating (VA) | 4992 VA |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower |
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| Rack Height | 0U |
| Mounting Preference | No Preference |
| Appearance | |
|---|---|
| Placement | Side |
| General Features | |
|---|---|
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Cables | |
|---|---|
| Cord Length | 9.84 ft |
| Compliance & Certification | |
|---|---|
| Mercury Free | Yes |
| Product Take Back Program | No |
| Optimized Energy Efficiency | Yes |
| REACH free of SVHC | No |
| Environmentally Friendly | Yes |
APC Rack PDU 9000 Switched, ZeroU, 30A, 120/208V, (16) 5-20R (7) C13/C15 (1) C19/C21 - Switched - NEMA L14-30P - 1 x IEC 60320 C19/C21, 7 x IEC 60320 C13/C15, 16 x NEMA 5-20R - 120 V, 208 V - Network (RJ-45) - 10 ft Cord Length - 0U - Vertical - Rack-mountable - Tower
