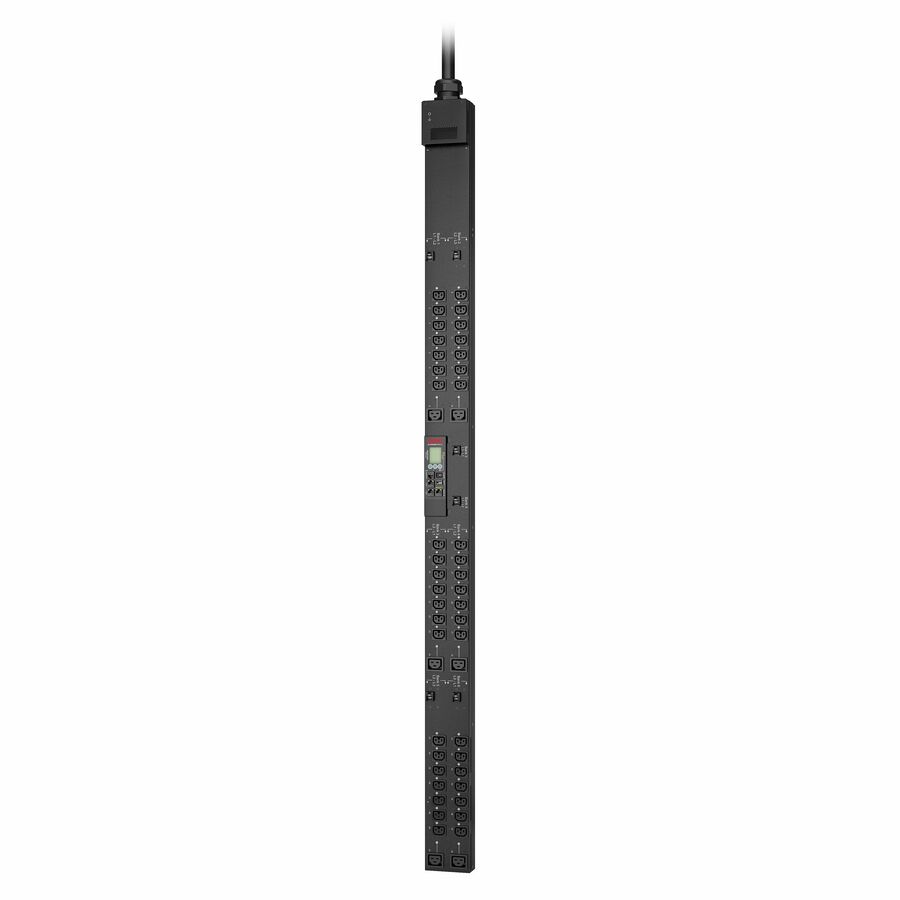

It is a switched rack PDU with a maximum current capacity of 60A and an input voltage of 208V. It features 42 C13 and C15 outlets and 6 C19 and C21 outlets, connected via an IEC 60309 60A 3P + PE plug. This PDU is designed for ZeroU mounting and supports a maximum line current of 48A.
- It can handle a maximum power capacity of 17.3kW, ideal for high-power applications
- It includes 42 IEC C13 and C15 outlets and 6 IEC C19 and C21 outlets, offering extensive connectivity
- The ZeroU mounting design helps save rack space and improves cable management
- Allows for remote monitoring and control, enhancing power management capabilities
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Power Rating (Watt) | 17.30 kW |
| PDU Type | Switched |
| Phase | Three Phase |
| Receptacle Detail | 42 x IEC 60320 C13/C15 |
| Receptacle Type | IEC 60320 C13/C15 |
| Plug/Connector Type | IEC 60309 60A 3P+PE |
| Input Voltage | 208 V |
| Output Voltage | 208 V AC |
| Input Current | 48 A |
| Power Rating (VA) | 17.30 kVA |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower |
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| Rack Height | 0U |
| Mounting Preference | No Preference |
| Appearance | |
|---|---|
| Placement | Side |
| General Features | |
|---|---|
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Cables | |
|---|---|
| Cord Length | 5.97 ft |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | No |
| REACH free of SVHC | No |
| Single-use Plastic (SUP) Free | No |
| Sustainable Packaging | No |
| SCIP Number | 31346aed-552c-4a16-81d9-e683a383b6da |
| Environmentally Friendly | Yes |
