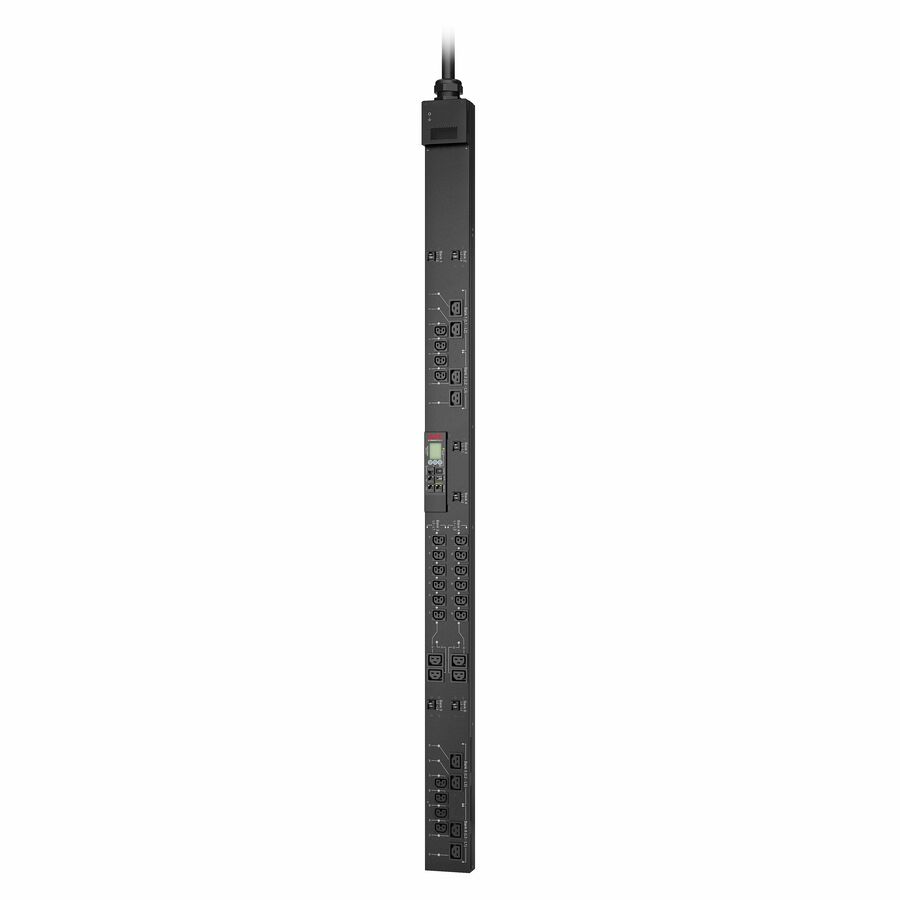

It is a switched rack PDU with a maximum current capacity of 60A and an input voltage of 208V. It includes 20 C13 and C15 outlets and 12 C19 and C21 outlets, connected via an IEC 60309 60A 3P + PE plug. It supports a maximum line current of 48A.
- It can handle a maximum power capacity of 17.3kW, making it suitable for very high-power applications
- It features 20 IEC C13 and C15 outlets and 12 IEC C19 and C21 outlets, providing extensive connectivity options
- Designed for ZeroU mounting, it saves rack space and facilitates better cable management
- Supports remote monitoring and control, allowing for efficient power management
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Power Rating (Watt) | 17.30 kW |
| PDU Type | Switched |
| Phase | Three Phase |
| Receptacle Detail | 20 x IEC 60320 C13/C15 |
| Receptacle Type | IEC 60320 C13/C15 |
| Plug/Connector Type | IEC 60309 60A 3P+PE |
| Input Voltage | 208 V |
| Output Voltage | 208 V AC |
| Input Current | 60 A |
| Power Rating (VA) | 17.30 kVA |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Preference | No Preference |
| Appearance | |
|---|---|
| Placement | Side |
| General Features | |
|---|---|
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Cables | |
|---|---|
| Cord Length | 5.97 ft |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | No |
| Optimized Energy Efficiency | Yes |
| REACH free of SVHC | No |
| Environmentally Friendly | Yes |
