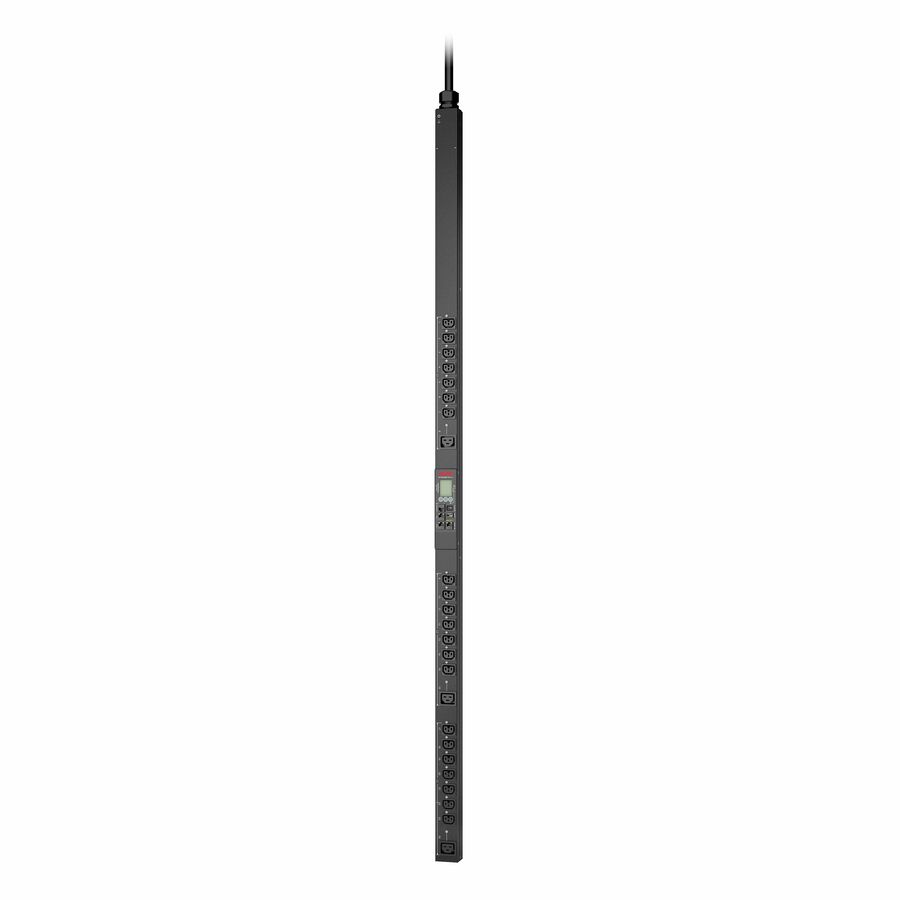

It is a switched rack PDU with a maximum current capacity of 20A and an input voltage of 415V. It features 21 C13 and C15 outlets and 3 C19 and C21 outlets, connected via an IEC 60309 20A 3P + N + PE plug. The PDU is designed for ZeroU mounting.
- It can handle a maximum power capacity of 11.5kW, ideal for demanding applications
- It includes 21 IEC C13 and C15 outlets and 3 IEC C19 and C21 outlets, offering extensive connectivity
- The ZeroU mounting design helps save rack space and improves cable management
- Allows for remote monitoring and control, enhancing power management capabilities
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Power Rating (Watt) | 11.50 kW |
| PDU Type | Switched |
| Remote Outlet Switching | Yes |
| Phase | Single Phase |
| Receptacle Detail | 3 x IEC 60320 C19/C21 |
| Receptacle Type | IEC 60320 C19/C21 |
| Plug/Connector Type | IEC 60309 20A 3P+N+PE |
| Input Voltage | 415 V |
| Output Voltage | 240 V AC |
| Input Current | 16 A |
| Power Rating (VA) | 11500 VA |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower |
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| Rack Height | 0U |
| Mounting Preference | No Preference |
| Appearance | |
|---|---|
| Placement | Side |
| General Features | |
|---|---|
| Protection Type | Circuit Protection |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Cables | |
|---|---|
| Cord Length | 5.97 ft |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | No |
| REACH free of SVHC | No |
| Reach Compliance Date | 12/10/2025 |
| Single-use Plastic (SUP) Free | No |
| Sustainable Packaging | No |
| SCIP Number | 31346aed-552c-4a16-81d9-e683a383b6da |
| Environmentally Friendly | Yes |
