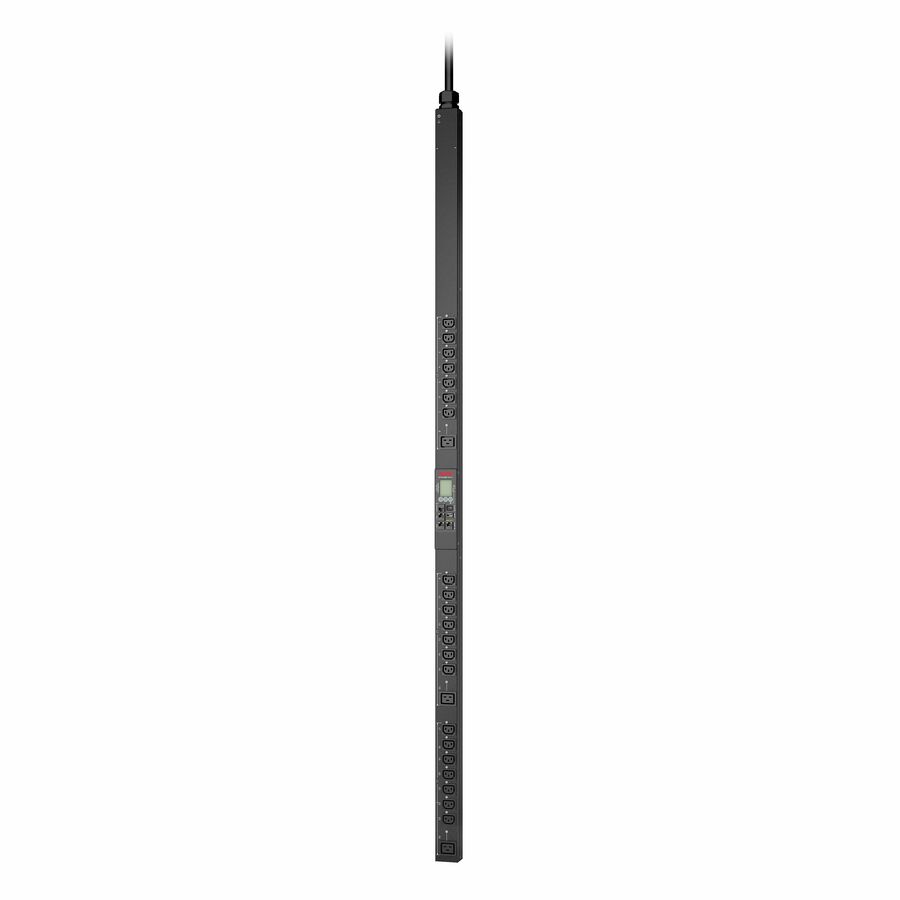

APC NetShelter Switched Rack PDU, 9K series, 0U, 11.0kW, 230V, 21 C13 and 3 C19 outlets

$ 2,949.99 $ 2,949.99
$ 2,949.99

$ 2,949.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • RoHS Exemption Information
  • Environmental Profile Availab
  • Product Take Back Program
  • End of Life Manual Availabili
  • REACH free of SVHC
  • WEEE Statement
  • REACH Declaration URL
  • EU RoHS Declaration URL
  • Reach Compliance Date
  • Single-use Plastic (SUP) Free
  • Sustainable Packaging
  • SCIP Number
  • Power Rating (Watt)
  • PDU Type
  • Phase
  • Protection Type
  • Management
  • Network (RJ-45)
  • Cord Length
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Detail
  • Plug/Connector Type
  • Form Factor
  • Mount Type
  • Mounting Orientation
  • Rack Height
  • Placement
  • Mounting Preference
  • Input Voltage
  • Output Voltage
  • Input Current
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Product Line
  • Manufacturer Website Address
  • For Country/Region
  • Power Rating (VA)
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
User-Manual PDF

It is a switched rack PDU with a maximum current capacity of 16A and an input voltage of 400V. It includes 21 IEC 60320 C13 outlets and 3 IEC 60320 C19 outlets, connected via an IEC 60309 16A 3P+N+PE plug. The PDU is designed for ZeroU mounting.

  • It can handle a maximum power capacity of 11.0kW, suitable for high-power applications
  • It features 21 IEC C13 outlets and 3 IEC C19 outlets, providing ample connectivity options
  • Designed for ZeroU mounting, it saves valuable rack space and allows for efficient cable management
  • Supports remote monitoring and control, enabling users to manage power distribution from a distance
Brand
Brand Schneider Electric SA
Power & Battery
Power Rating (Watt) 11 kW
PDU Type Switched
Phase Three Phase
Receptacle Detail 3 x IEC 60320 C19
Receptacle Type IEC 60320 C19
Plug/Connector Detail 1 x IEC 60309 16A 3P+N+PE
Plug/Connector Type IEC 60309 16A 3P+N+PE
Input Voltage 400 V
Output Voltage 230 V AC
Input Current 16 A
Power Rating (VA) 11000 VA
Ethernet Port
Network (RJ-45) Yes
Size / Dimensions
Form Factor Tower
Mount Type Rack-mountable
Mounting Orientation Vertical
Rack Height 0U
Mounting Preference No Preference
Appearance
Placement Side
General Features
Protection Type Accidental Power Shutdown
Manufacturer Schneider Electric SA
For Country/Region United States
Cables
Cord Length 5.97 ft
Compliance & Certification
Product Take Back Program No
REACH free of SVHC No
Reach Compliance Date 12/10/2025
Single-use Plastic (SUP) Free No
Sustainable Packaging No
SCIP Number 31346aed-552c-4a16-81d9-e683a383b6da
Environmentally Friendly Yes
