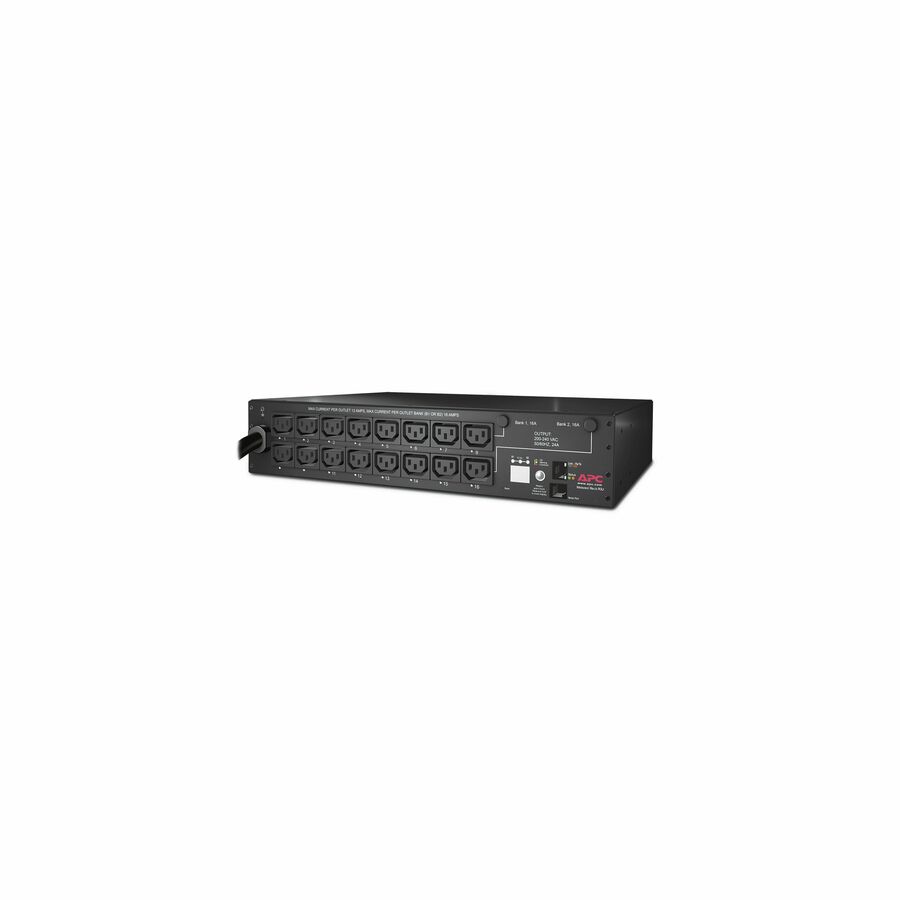

It is a switched rack PDU with a maximum current capacity of 30A and an input voltage of 208V. It includes 16 IEC C13 outlets and a NEMA L6-30P input connection. The PDU has a 2U form factor and a cord length of 12 feet. It supports remote monitoring and user-defined alarms, with outlet-level on/off switching capabilities. The unit is UL Listed and CSA certified, ensuring high safety and performance standards.
- Allows for remote monitoring and control, enhancing power management capabilities
- The 2U form factor helps save rack space and improves cable management
- It includes 16 IEC C13 outlets, offering extensive connectivity
- It can handle a maximum current capacity of 30A, suitable for high-power applications
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| PDU Type | Switched |
| Receptacle Detail | 16 x IEC 60320 C13 |
| Receptacle Type | IEC 60320 C13 |
| Plug/Connector Detail | 1 x NEMA L6-30P |
| Plug/Connector Type | NEMA L6-30P |
| Input Voltage Range | 200 V AC - 230 V AC |
| Input Voltage | 230 V |
| Output Voltage | 208 V AC |
| Input Current | 30 A |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Horizontal |
| Rack Height | 2U |
| Mounting Preference | No Preference |
| Appearance | |
|---|---|
| Placement | Rear |
| General Features | |
|---|---|
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Cables | |
|---|---|
| Cord Length | 11.98 ft |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | No |
| Reach Compliance Date | 12/10/2025 |
| Single-use Plastic (SUP) Free | No |
| Sustainable Packaging | No |
| SCIP Number | 1cdb2fed-a06f-4574-913d-8df8e70936b2 |
| Environmentally Friendly | Yes |
