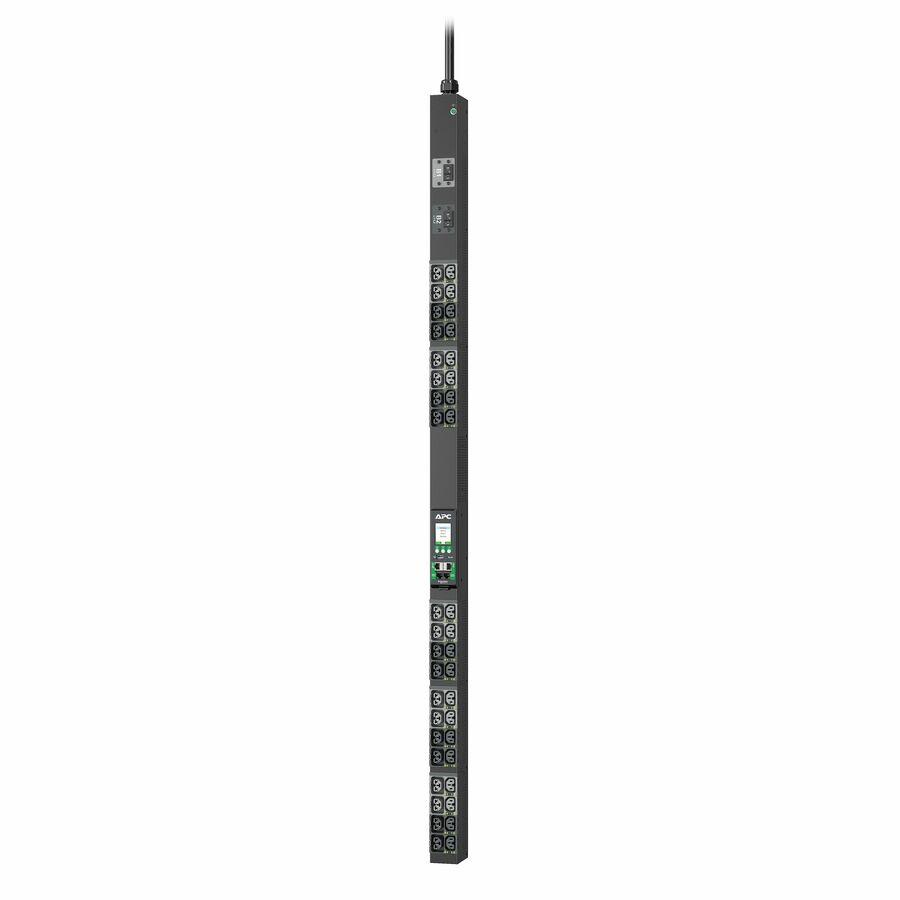

APC NetShelter Rack PDU Advanced provide reliable power distribution to IT Equipment within server and/or networking racks. Switched outlets to turn outlets on or off remotely. Outlet and PDU level power metering for power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 40 outlets in a 2.2" wide form factor. Outlets on the PDUs are color coded by breaker to simplify deployment. Power Sharing allows PDUs cascaded together via 2 ethernet ports enable an Network Management Card to continue functioning in the event of an AC power loss. No interruption in Network communication, sensors operation, and alarm traps. Live Swap Network Management Card (NMC) which can be replaced without powering down the PDU or connected devices to minimize downtime in the unlikely event of an NMC power event. Rated and approved to operate up to 60C (140F) at full load ensures reliability and availability even in today's high density deployments. Gigabit ethernet to enhance and standardize network connectivity across all assets in the data center. A second ethernet port (10/100) is available to allow cascading to other PDUs, connect to a 2nd private network, or provide network redundancy. 1% metering accuracy for the peace of mind to use NetShelter Rack PDU Advanced to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Two environmental sensor ports allow for optional sensors (sold separately) to be connected.
- Input: 1PH, NEMA L6-30P
- Outlets: (20) C13/C15/C19/C21, (20) C13/C15
- Full-featured network management capability
- Interactive LCD display
- Active power measurements (volts, amps, kW, kWh)
- 3-year APC warranty
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Power Rating (Watt) | 5000 W |
| PDU Type | Switched |
| Phase | Single Phase |
| Receptacle Detail | 20 x IEC 60320 C13/C15/C19/C21 |
| Receptacle Type | IEC 60320 C13/C15 |
| Plug/Connector Type | NEMA L6-30P |
| Input Voltage Range | 200 V AC - 240 V AC |
| Input Voltage | 208 V |
| Output Voltage | 208 V AC |
| Input Current | 30 A |
| Power Rating (VA) | 4992 VA |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack |
| Mounting Orientation | Vertical |
| Rack Height | 0U |
| Mounting Preference | No Preference |
| Appearance | |
|---|---|
| Placement | Side |
| General Features | |
|---|---|
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Cables | |
|---|---|
| Cord Length | 9.84 ft |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | No |
| Optimized Energy Efficiency | Yes |
| REACH free of SVHC | Yes |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | NetShelter 40-Outlets PDU |
