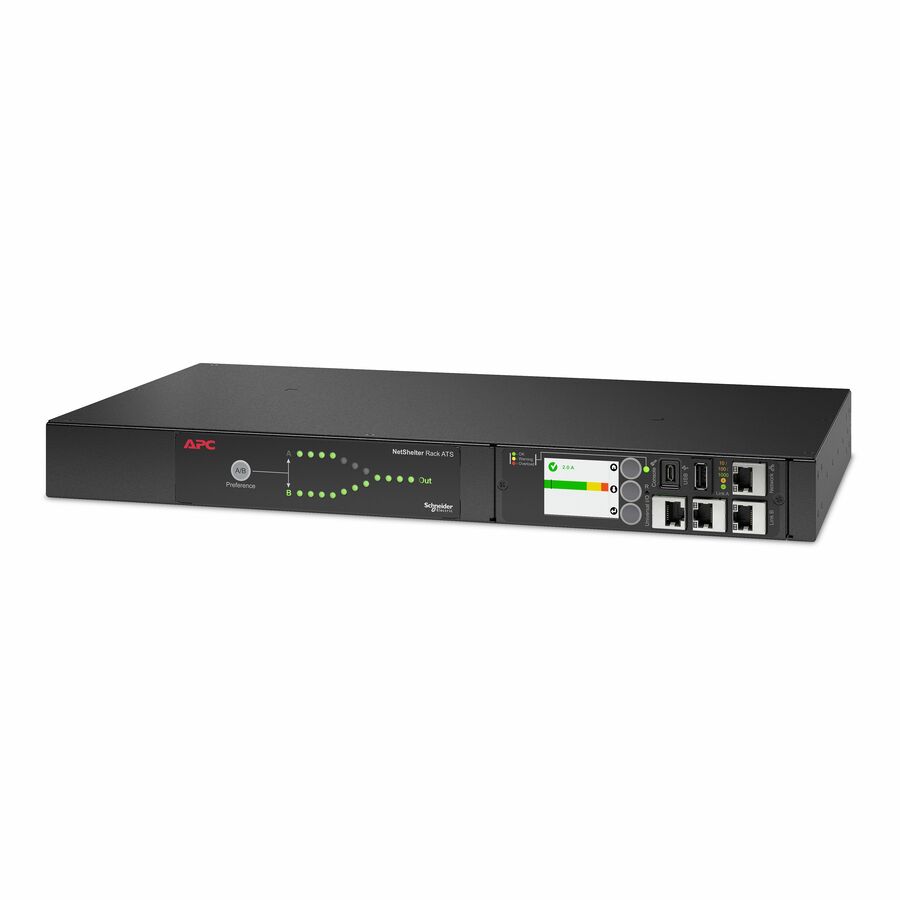

APC Netshelter Rack Automatic Transfer Switch, 1U, 20A, 120V, 2 L5-20 IN, 10 5-20R OUT, 50/60 Hz

$ 1,704.99 $ 1,704.99
$ 1,704.99

$ 1,704.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Additional Warranty Informati
  • Width
  • RoHS Exemption Information
  • Environmental Profile Availab
  • Product Take Back Program
  • End of Life Manual Availabili
  • REACH free of SVHC
  • WEEE Statement
  • REACH Declaration URL
  • EU RoHS Declaration URL
  • Cord Length
  • Receptacles
  • Plug/Connector Type
  • Form Factor
  • Product Color
  • Color Family
  • Mounting Location
  • Rack Height
  • Mounting Preference
  • Input Voltage
  • Output Voltage
  • Current
  • Environmentally Friendly
  • Environmental Compliance
  • Certifications & Standards
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Line
  • Manufacturer Website Address
  • For Country/Region
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
User-Manual PDF

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4452A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4452A is single phase 1U Rack ATS with 20A rated current, 120V rated voltage and 1920VA load capacity. For North America region, the Regulatory Derated Input Current is 16A. It comes with 2 NEMA L5-20P inlet and 1 NEMA L6-30R outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.

More from the Manufacturer

  • Minimized downtime disruption with Field-replaceable NMC
  • Monitor temperature and humidity efficiently
  • Dual input power cords to enhance uptime for critcal loads
  • Connect and manage up to 32 Rack ATSs from one IP address
  • Seamless switching with transfer time 10ms
  • Supports APC Wi-fi USB device for cableless installation & setup
  • Gigabit Ethernet support for faster Communication
  • Remote management via Web UI, CLI, SNMP or EcoStruxure expert
  • APC NMC3 integrated for enhanced cyber security
Brand
Brand Schneider Electric SA
Power & Battery
Receptacles 10 x NEMA 5-20R
Plug/Connector Type NEMA L5-20P 16A (2P + E)
Input Voltage 120 V AC
Output Voltage 120 V AC
Current 20 A
Size / Dimensions
Form Factor Rack-mountable
Mounting Location Rear
Rack Height 1U
Mounting Preference No Preference
General Features
Manufacturer Schneider Electric SA
For Country/Region United States
Cables
Cord Length 95.64"
Compliance & Certification
Product Take Back Program No
REACH free of SVHC No
Environmentally Friendly Yes
