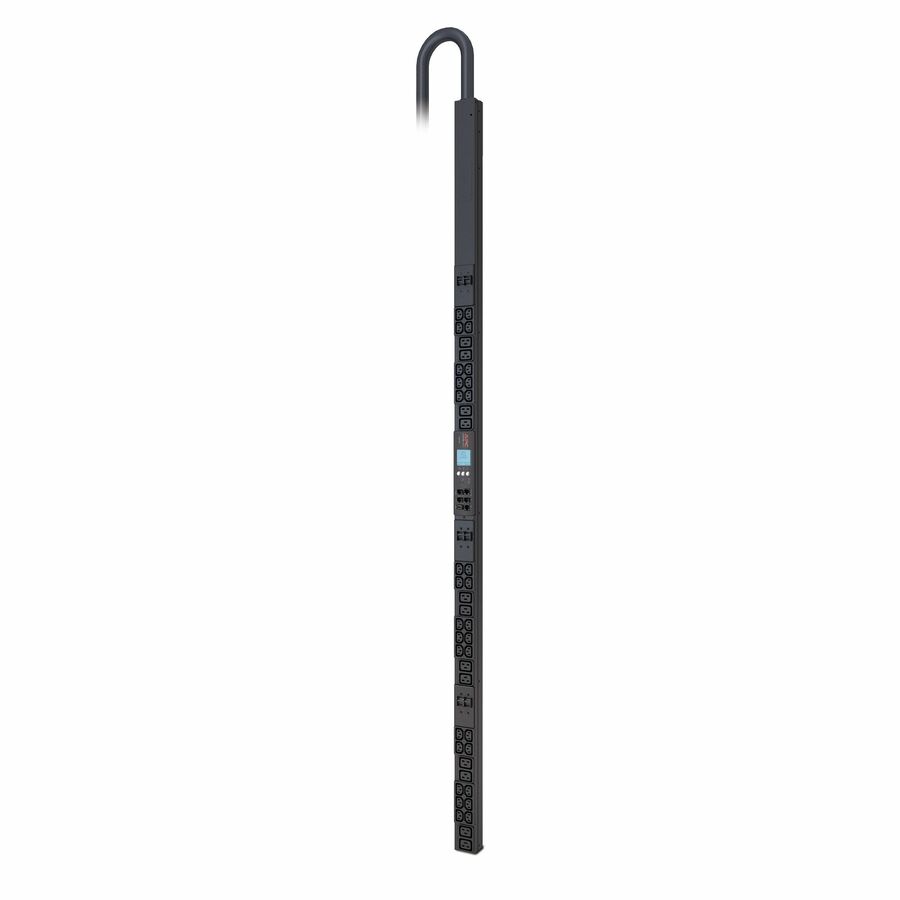

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency
- Zero U toolless installation
- Stay on top of potential circuit overloads with user-defined alarms
- Real-time remote monitoring and management through EcoStruxure IT & Secure NMC3
- Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
- Ideal for colocation, large or remote data center operators
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| PDU Type | Metered |
| Receptacle Detail | 12 x IEC 60320 C19 |
| Receptacle Type | IEC 60320 C19 |
| Plug/Connector Type | IEC 60309 30A 3P+N+E |
| Input Voltage | 400 V |
| Output Voltage | 240 V AC |
| Power Rating (VA) | 17.30 kVA |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower |
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| Rack Height | 0U |
| Mounting Preference | No Preference |
| Appearance | |
|---|---|
| Placement | Side |
| General Features | |
|---|---|
| Protection Type | Overload Protection |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Cables | |
|---|---|
| Cord Length | 5.97 ft |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | No |
| Reach Compliance Date | 12/10/2025 |
| Single-use Plastic (SUP) Free | No |
| Sustainable Packaging | No |
| Halogen Content Performance | Product contains halogen above thresholds |
| Environmentally Friendly | Yes |
| Packaging & Origin | |
|---|---|
| Number of Cord/Cable | 1 |
