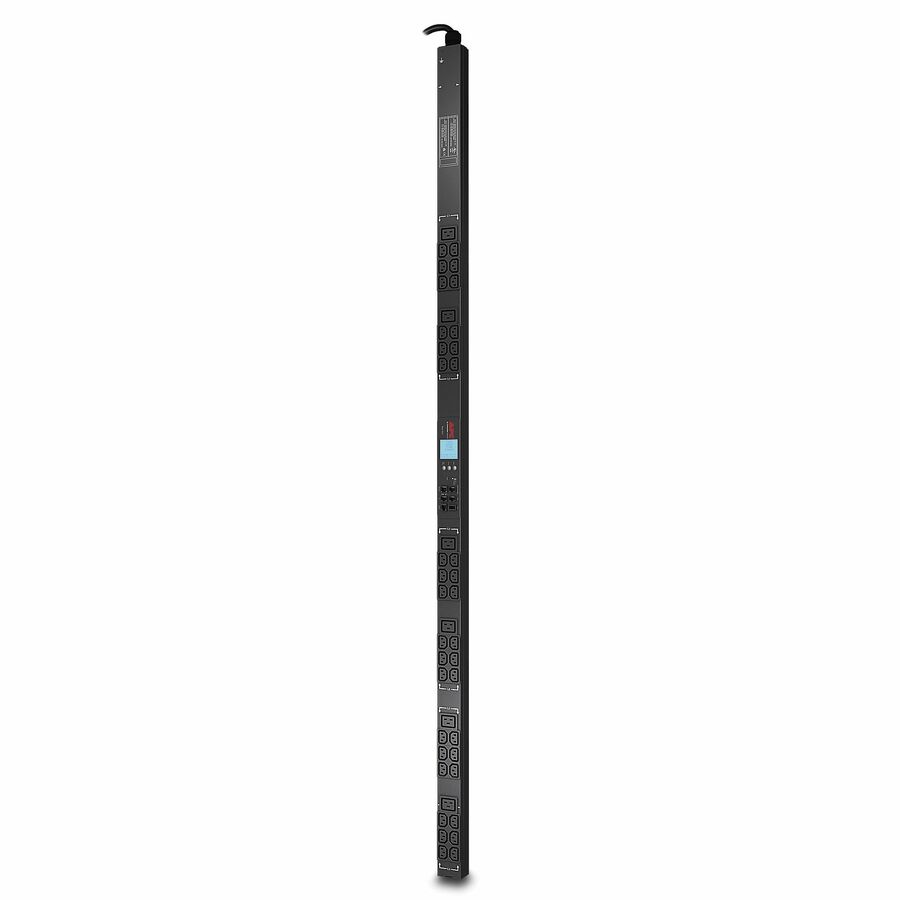

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This 3 phase PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU via IEC 309 3P+N+PE plug with a 1.8m (16 ft) cord while power comes out at 230 volts through (36) C13 and (6) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates
- Stay on top of potential circuit overloads with user-defined alarms
- 1-Year Secure Network Management Card subscription included
- Easily monitor and manage through EcoStruxure IT and other platforms
- Enables improved energy efficiency and scope 1 and 3 emissions tracking
- Plan capacity & balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
- Ideal for colocation, large or remote data center operators
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| PDU Type | Metered |
| Plug/Connector Type | IEC 60309 20A 3P+N+PE |
| Input Voltage | 400 V |
| Output Voltage | 230 V AC |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Mounting Preference | No Preference |
| General Features | |
|---|---|
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Cables | |
|---|---|
| Cord Length | 5.97 ft |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | No |
| Reach Compliance Date | 12/10/2025 |
| Single-use Plastic (SUP) Free | No |
| Sustainable Packaging | No |
| SCIP Number | 1cdb2fed-a06f-4574-913d-8df8e70936b2 |
| Halogen Content Performance | Product contains halogen above thresholds |
| Packaging Contains Recycled C | Yes |
| Environmentally Friendly | Yes |
| Packaging & Origin | |
|---|---|
| Number of Cord/Cable | 1 |
| Brand | Schneider Electric SA |
| UPC/GTIN | 731304277071 |
| MPN | AP8881 |
| Unit Count | 1 Units |
| Warranty | 2 Year |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
| Customer Reviews | 5.0 (3) |
