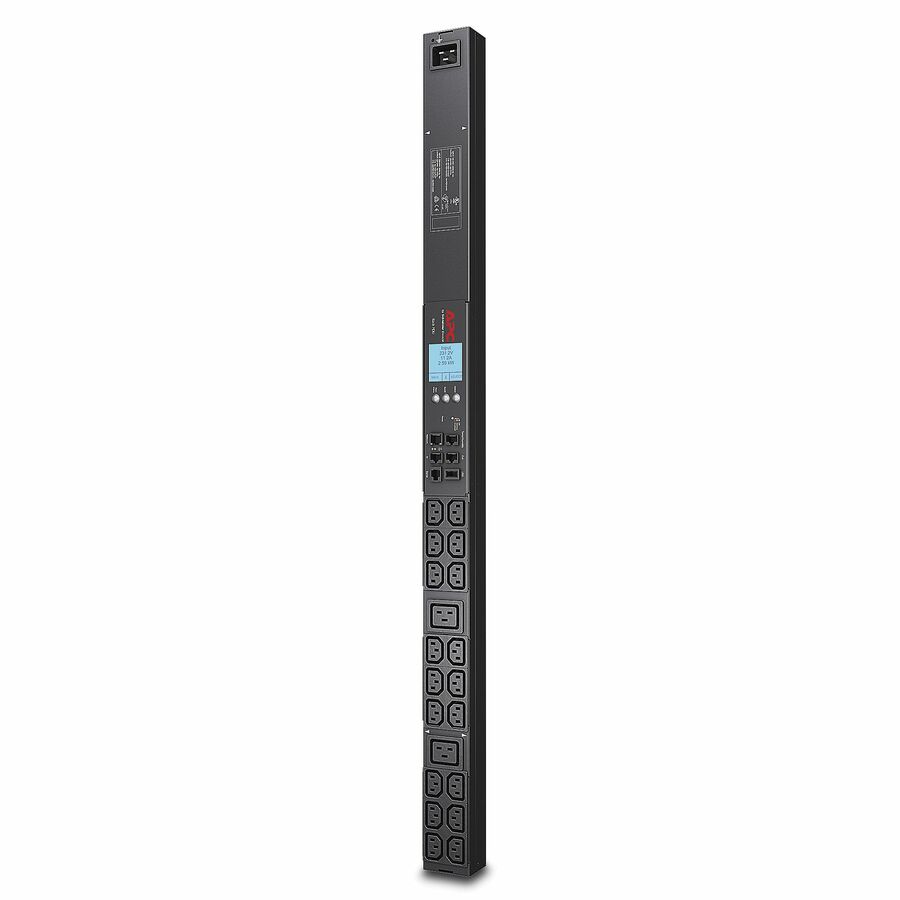

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 220-240 volts via IEC C20 inlet (no cord provided) while power comes out at 100-230 volts through (18) C13 and (2) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates
- Stay on top of potential circuit overloads with user-defined alarms
- Easily monitor and manage through EcoStruxure IT and other platforms
- 1-Year Secure Network Management Card subscription included
- Enables improved energy efficiency and scope 1 and 3 emissions tracking
- Ideal for colocation, large or remote data center operators
- Plan capacity & balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| PDU Type | Metered |
| Plug/Connector Type | IEC 60320 C20 |
| Input Voltage | 230 V |
| Output Voltage | 230 V AC |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| Rack Height | 0U |
| Mounting Preference | No Preference |
| Appearance | |
|---|---|
| Placement | Side |
| General Features | |
|---|---|
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | No |
| Reach Compliance Date | 12/10/2025 |
| Single-use Plastic (SUP) Free | No |
| Sustainable Packaging | No |
| Halogen Content Performance | Product contains halogen above thresholds |
| Environmentally Friendly | Yes |
