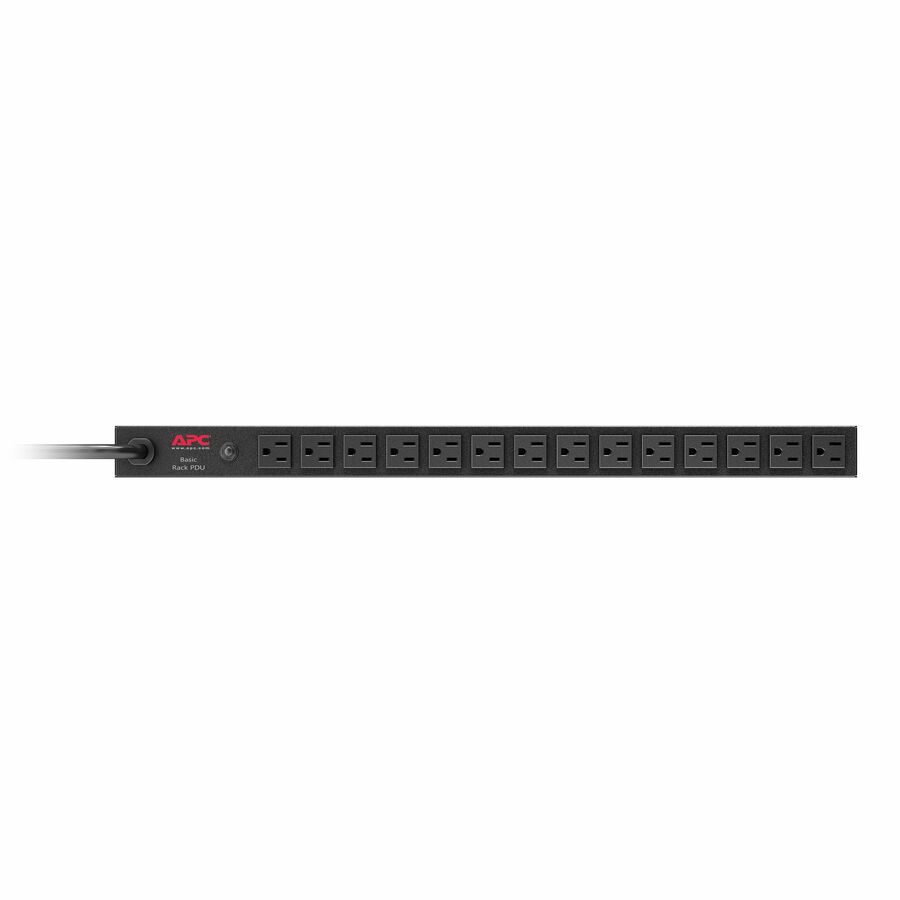

It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 20A and operates at 120V. The PDU features 14 NEMA 5-15R outlets, providing ample connections for IT equipment. It includes a 12-foot power cord with a NEMA L5-20P plug. The unit is designed for reliable power distribution and includes rack mounting brackets and a toolless mounting kit.
- Supports up to 20A, 120V power distribution
- Includes toolless mounting kit for quick setup
- Vertical mounting to save rack space
- Features 14 NEMA 5-15R outlets for extensive power distribution
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| PDU Type | Basic |
| Receptacle Detail | 14 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | NEMA L5-20P |
| Input Voltage Range | 120 V AC - 132 V AC |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Power Rating (VA) | 2400 VA |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| Rack Height | 0U |
| Mounting Preference | No Preference |
| Appearance | |
|---|---|
| Placement | Side |
| General Features | |
|---|---|
| Protection Type | Overload Protection |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Cables | |
|---|---|
| Cord Length | 11.98 ft |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | No |
| Environmentally Friendly | Yes |
| Warranty & Support | |
|---|---|
| Parts Warranty/Labor | 2 Year |
| Miscellaneous | |
|---|---|
| Product Name | Basic Rack 2400VA PDU |
Rack PDU, Basic, Zero U, 20A, 120V, (14)5-15 - Basic - NEMA L5-20P - 14 x NEMA 5-15R - 100 V, 120 V - 2400 W - Overload Protection - 12 ft Cord Length - 0U - Vertical - Rack-mountable
