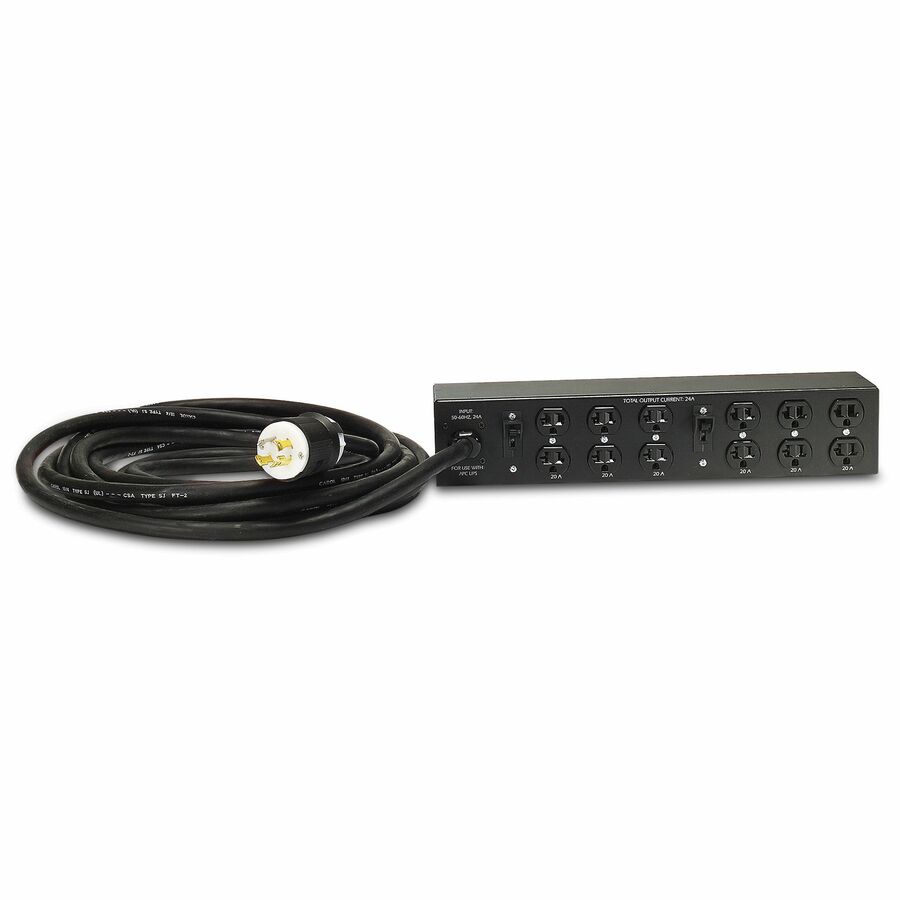

It is a basic rack PDU with a 2U horizontal mounting design. It supports a maximum input current of 30A and operates at 120V. The PDU features 12 NEMA 5-20R outlets, providing connections for IT equipment. It includes a 28-foot power cord with a NEMA L14-30P plug. The unit is designed for reliable power distribution and includes an installation guide and rack mounting brackets.
- 28 ft cord for flexible installation
- Equipped with 12 NEMA 5-20R outlets for versatile power connections
- Horizontal mounting to fit various rack configurations
- Supports up to 30A, 120V power distribution
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| PDU Type | Basic |
| Circuit Breaker | Yes |
| Receptacle Detail | 12 x NEMA 5-20R |
| Receptacle Type | NEMA 5-20R |
| Plug/Connector Type | NEMA L14-30P |
| Input Voltage | 208 V |
| Output Voltage | 120 V AC |
| Power Rating (VA) | 4992 VA |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Horizontal |
| Rack Height | 2U |
| Mounting Preference | Lower |
| Appearance | |
|---|---|
| Placement | Rear |
| General Features | |
|---|---|
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Cables | |
|---|---|
| Cord Length | 27.99 ft |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | No |
| Environmentally Friendly | Yes |
| Warranty & Support | |
|---|---|
| Parts Warranty/Labor | 2 Year |
Rack PDU Extender, Basic, 2U, 30A, 120V, (12)5-20 - Basic - NEMA L14-30P - 12 x NEMA 5-20R - 200 V, 208 V - 4992 W - 28 ft Cord Length - 2U - Horizontal - Rack-mountable
