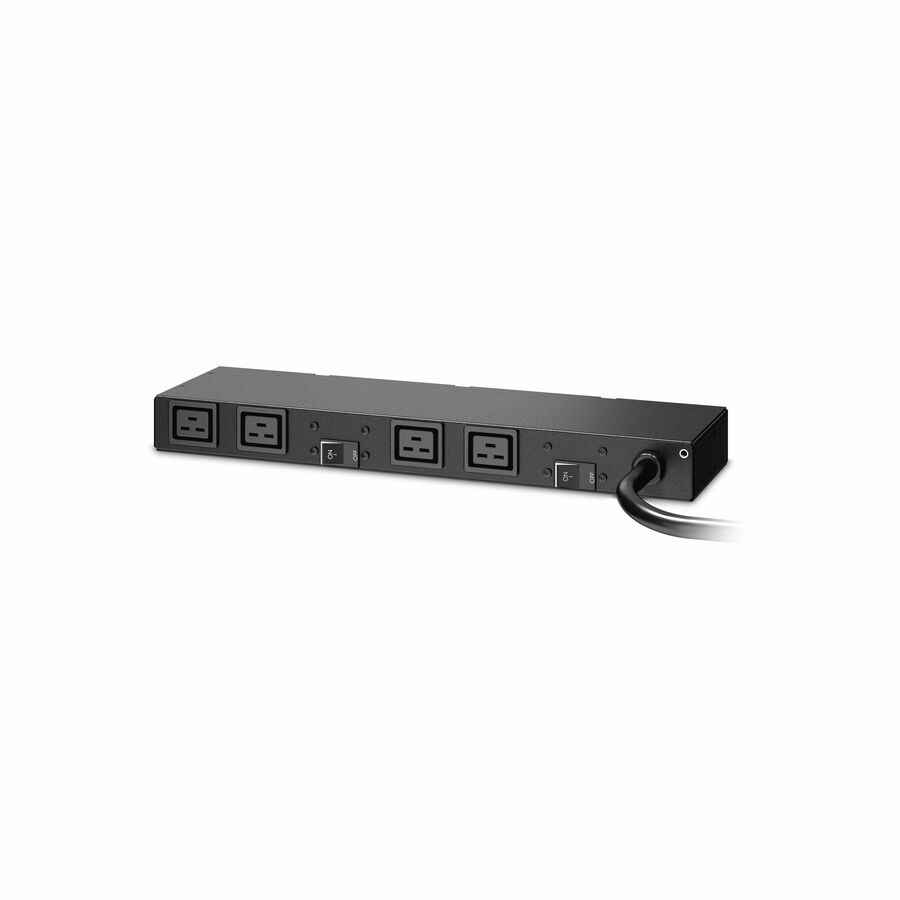

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 30A and operates at 208V. The PDU features 4 IEC 60320 C19 outlets, providing connections for high-power IT equipment. It includes a 12-foot power cord with a NEMA L6-30P plug. The unit is designed for reliable power distribution and includes an installation guide and safety guide.
- Includes toolless mounting kit for quick setup
- Can be mounted horizontally or vertically
- Equipped with 4 C19 outlets for versatile power connections
- Supports up to 30A, 208V power distribution
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| PDU Type | Basic |
| Receptacle Detail | 4 x IEC 60320 C19 |
| Receptacle Type | IEC 60320 C19 |
| Plug/Connector Detail | 1 x NEMA L6-30P |
| Plug/Connector Type | NEMA L6-30P |
| Input Voltage | 208 V |
| Output Voltage | 208 V AC |
| Input Current | 30 A |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower |
| Mount Type | Rack-mountable |
| Mounting Orientation | Horizontal |
| Rack Height | 1U |
| Mounting Preference | No Preference |
| Appearance | |
|---|---|
| Placement | Rear |
| General Features | |
|---|---|
| Protection Type | Overcurrent Protection |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Cables | |
|---|---|
| Cord Length | 11.98 ft |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | No |
| Reach Compliance Date | 12/10/2025 |
| Single-use Plastic (SUP) Free | No |
| Sustainable Packaging | No |
| SCIP Number | 1cdb2fed-a06f-4574-913d-8df8e70936b2 |
| Halogen Content Performance | Product contains halogen above thresholds |
| Environmentally Friendly | Yes |
