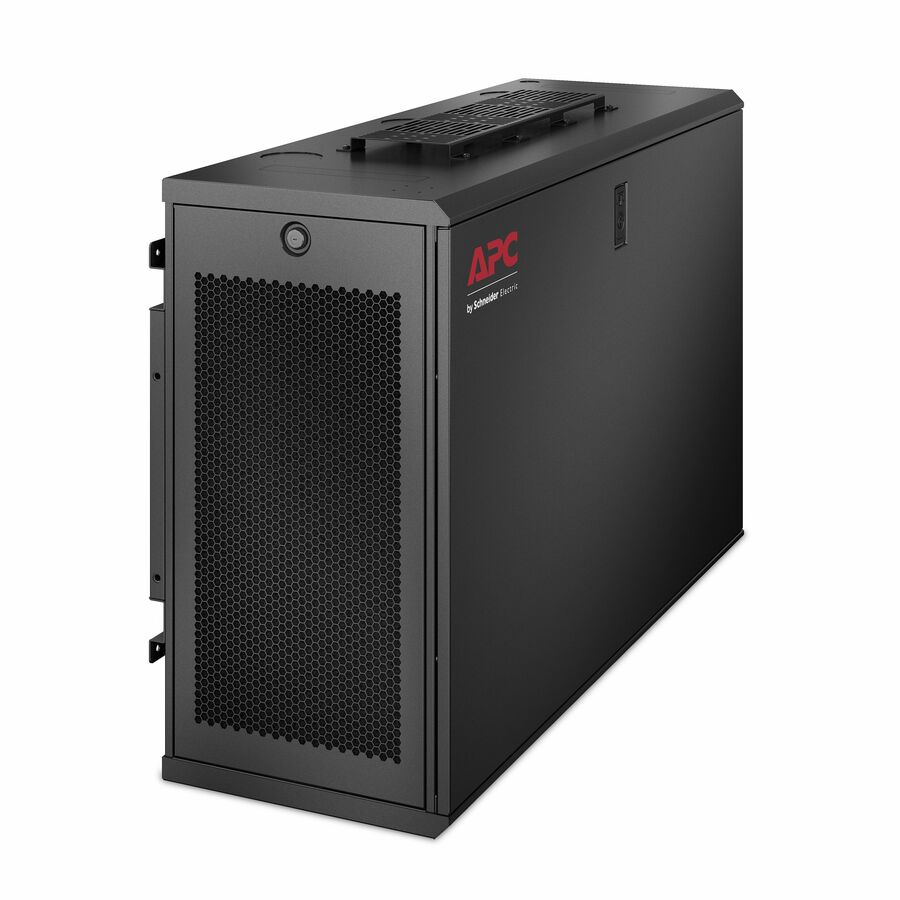

APC by Schneider Electric 6U Wall-Mount is an innovative new way to deploy server and networking equipment at the edge. Ideal for retail, healthcare, educational facilities and light industrial spaces, the low-profile design offers an efficient solution for deploying hyperconverged server and networking applications. The rack enclosure allows longer depth equipment to be wall mounted, up to 30 inches deep. A detachable wall bracket and optional casters (sold separately) allow the server rack to be mounted on either the wall or stand alone on the floor. A dust filter and two integrated fans allow deployment in light-industrial environments. APC Smart-UPS, APC NetBotz Physical and Environmental Security, and APC EcoStruxure IT can be configured with this cabinet (sold separately). 6U vertical wall-mount cabinet, 30 in mounting depth, 250 lb weight capacity, 19" rack width, side panels for access to equipment, ships fully assembled, UL2416 Listed, MERV 5 dust filter and 120V integrated fans included. Input connector IEC 60320 C13 with 500VA - 1.5kVA output power capacity.
- Ships pre-assembled
- 5 year APC warranty
- APC Smart-UPS, Casters AR8471, Netbotz NBRK0750 are sold separately
- Shock packaging included for easy integration
- Fan and dust filter included
- Vertical device mounting
- Wallmount or stand alone with optional casters
- Wallmount Rack Enclosure
- 6U, 30in mounting depth, Max.load 250lb
- Efficient and secure edge computing solution when floor space is limited
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Plug/Connector Type | IEC 60320 C13 |
| Input Voltage | 120 V |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| Mounting Location | Vertical |
| Rack Height | 6U |
| Rack Width | 19" |
| Rack Depth | 30" |
| Mounting Preference | No Preference |
| Static/Stationary Weight Capacity | 250.53 lb |
| Dynamic/Rolling Weight Capacity | 250.53 lb |
| General Features | |
|---|---|
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Compliance & Certification | |
|---|---|
| Mercury Free | Yes |
| Product Take Back Program | No |
| REACH free of SVHC | Yes |
| Toxic Heavy Metal Free | Yes |
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Assembly Required | No |
