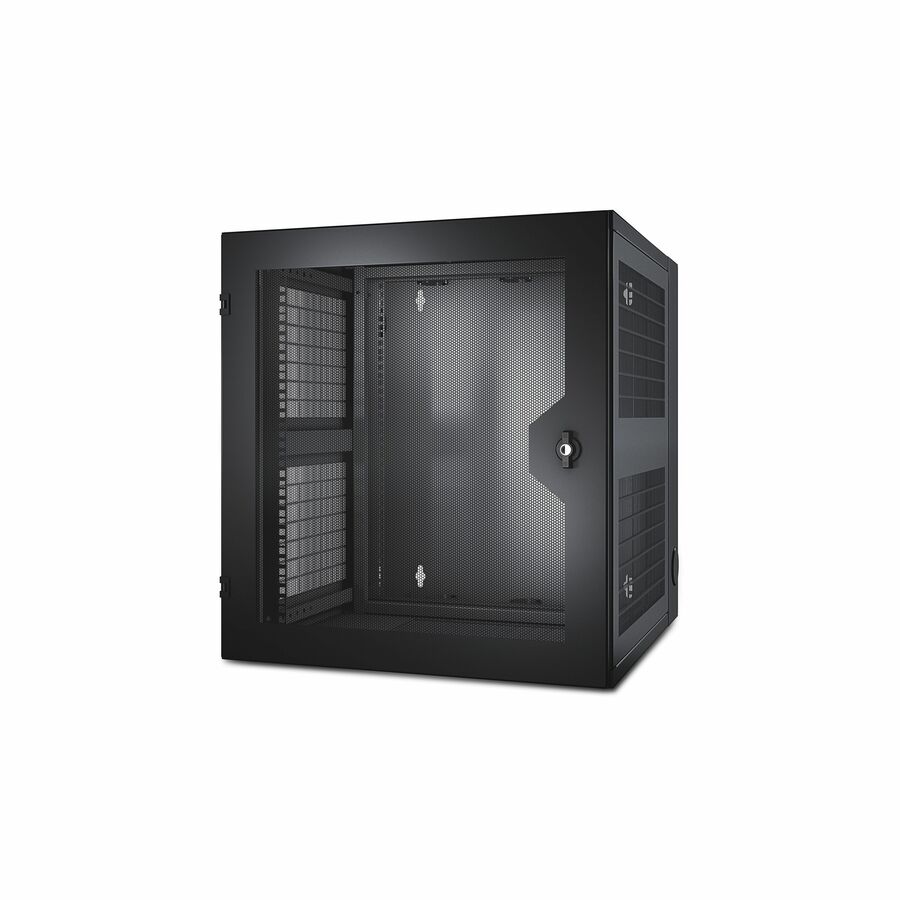

Ideal for retail, healthcare, and educational facilities, the wall rack offers an efficient solution for deploying server and networking equipment for edge computing applications. For areas with limited floor space. Designed to house your server, as well as network solutions such as network switches and patch panels. Rack hinges at the rear allowing for access to the back of the rack during installation and setup or while undergoing maintenance. The door is reversible allowing for the door to open direction desired to avoid interference with its surroundings. Optional 120V fan tray top mounted and caster kit. Several APC Smart-UPS models low-profile provide easy UPS integration and mounting. 13U Wall mount cabinet, 19 inches maximum mounting depth, 200lb weight capacity, 19"" rack width, ships fully assembled, vented door, 5 year APC warranty
- Fan tray AR8206ABLK sold separately
- Ships pre-assembled
- 5 year APC warranty
- Ventilated front door
- Reversible single-hinge front door
- Adjustable front mounting rails with square or #12-24 tapped holes
- 13U, 631mm deep, Max. load 200lb
- Rear hinging for equipment installation & mainteance
- Efficient and secure edge computing solution when floor space is limited
- Wallmount Rack Enclosure
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| Rack Height | 13U |
| Rack Width | 19" |
| Mounting Preference | No Preference |
| Static/Stationary Weight Capacity | 200.42 lb |
| Appearance | |
|---|---|
| Rail Material Gauge | 16 |
| Roof/Top Material Gauge | 18 |
| Side Panel Material Gauge | 18 |
| General Features | |
|---|---|
| Front Rail | Yes |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | No |
| REACH free of SVHC | No |
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Assembly Required | No |
