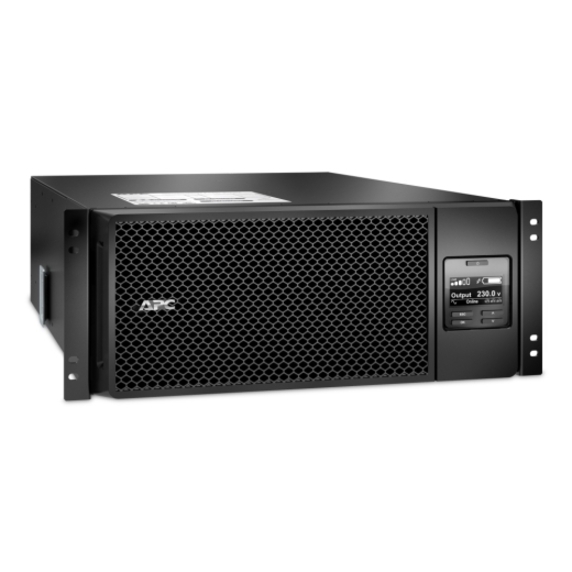

A versatile UPS developed for the harshest power conditions in the world.
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
- Rack/Tower convertible - Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- LCD graphics display - Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Battery failure notification - Provides early-warning fault analysis on batteries enabling timely preventive maintenance
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Battery Characteristics | Maintenance-free , Sealed , Spill-proof |
| Number of Battery & Surge Out | 24 |
| Emergency Power OFF | Yes |
| Circuit Breaker | Yes |
| Number of Battery & Surge Outlets | 24 |
| Battery Chemistry | Lead Acid |
| Number of Batteries | 1 |
| Typical Battery Recharge Time | 3 Hour |
| Output Voltage | 230 V AC |
| Load Capacity (Watt) | 6000 W |
| Load Capacity (VA) | 6000 VA |
| Backup/Run Time (Full Load) | 2 Minute |
| Backup/Run Time (Half Load) | 8 Minute |
| Waveform Type | Sine Wave |
| USB Ports | |
|---|---|
| USB | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| General Features | |
|---|---|
| Bypass Switch | Automatic & Manual |
| Hot Swappable | Yes |
| Alarm | Battery Failure |
| Protection Type | Lightning |
| Manufacturer | Schneider Electric SA |
| Thermal Dissipation | 380.99 W |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Environmentally Friendly | Yes |
| Sound Emission (A-Weighted) | 55 dB(A) |
