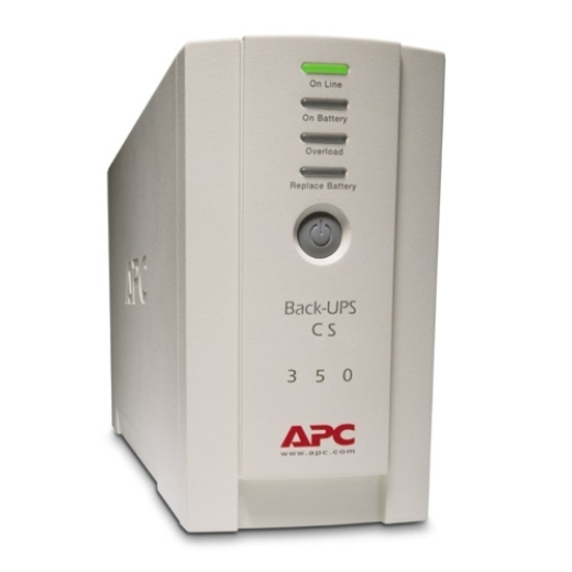

The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.
- USB connectivity - Provides management of the UPS via a USB port (not available on all models).
- Serial connectivity - Provides management of the UPS via a serial port.
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 6 |
| Receptacle Detail | 2 |
| Receptacle Type | IEC 60320 C13 |
| Plug/Connector Type | IEC 320-C14 |
| Number of Battery & Surge Outlets | 6 |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Maintenance-free |
| Typical Battery Recharge Time | 6 Hour |
| Input Voltage | 220 V AC |
| Output Voltage | 230 V AC |
| Load Capacity (Watt) | 210 W |
| Load Capacity (VA) | 350 VA |
| Backup/Run Time (Full Load) | 4.70 Minute |
| Backup/Run Time (Half Load) | 18.10 Minute |
| Waveform Type | Stepped Sine Wave |
| Surge Energy Rating | 300 J |
| USB Ports | |
|---|---|
| USB | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Alarm | Overload |
| Manufacturer | Schneider Electric SA |
| Thermal Dissipation | 5.57 W |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 113°F (45°C) |
| Environmentally Friendly | Yes |
| Sound Emission | 40 dB |
