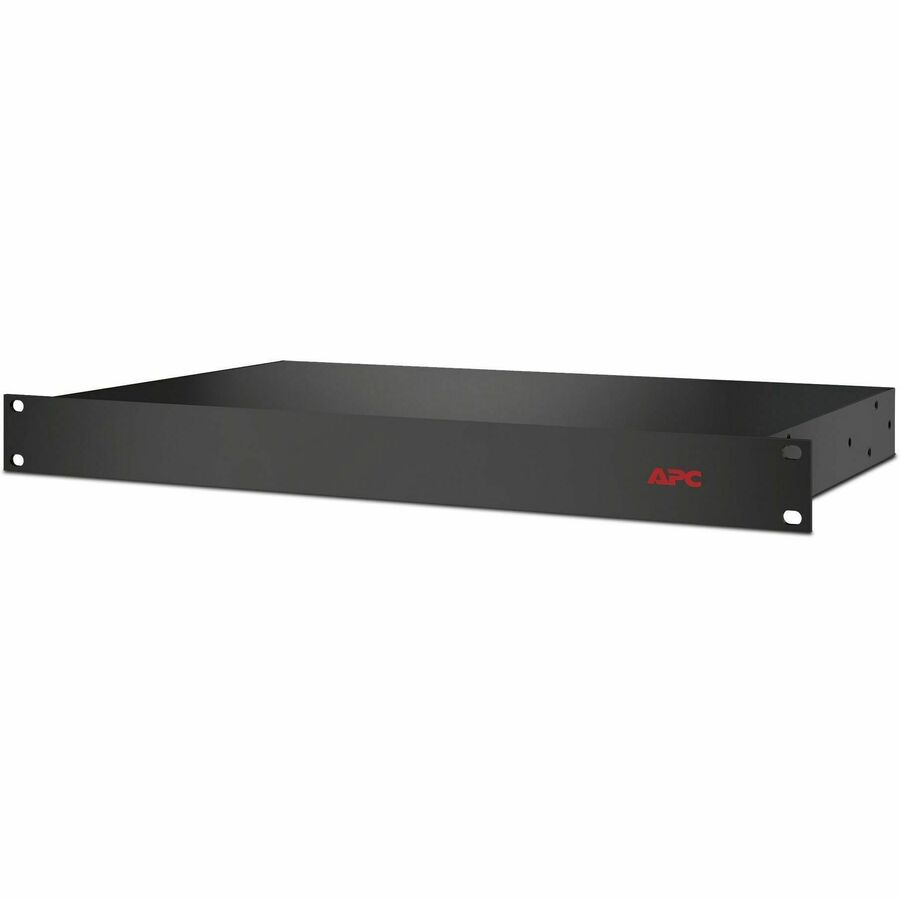

The APC Filter for Marine application provides high availability and ruggedized power protection for shipboard and other transportation applications. It supports input voltage range of 208V to 240V, and output voltage range of 200V to 240V. The filter has a load capacity of 3000 VA and includes one IEC 60320 C19 power socket outlet. It operates at a frequency range of 47-63 Hz and has a maximum line current of 16 A. The unit is 1U in height.
- Offers a load capacity of 3000 VA
- 1U height makes it suitable for space-constrained environments
- Supports input voltages of 208V, 220V, 230V, and 240
- Provides ruggedized power protection for shipboard and transportation applications
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Receptacles | IEC 60320 C20 |
| Plug/Connector Type | IEC 60320 C20 |
| Input Voltage | 240 V |
| Output Voltage | 240 V AC |
| Maximum Line Current | 16 A |
| Audio | |
|---|---|
| Power Handling | 3000 VA |
| Size / Dimensions | |
|---|---|
| Mounting Location | Front |
| Rack Height | 1U |
| Mounting Preference | No Preference |
| General Features | |
|---|---|
| Protection Type | Surge |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Cables | |
|---|---|
| Power Cord/Cable Length | 8 ft |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | Yes |
| REACH free of SVHC | No |
| Environmentally Friendly | Yes |
