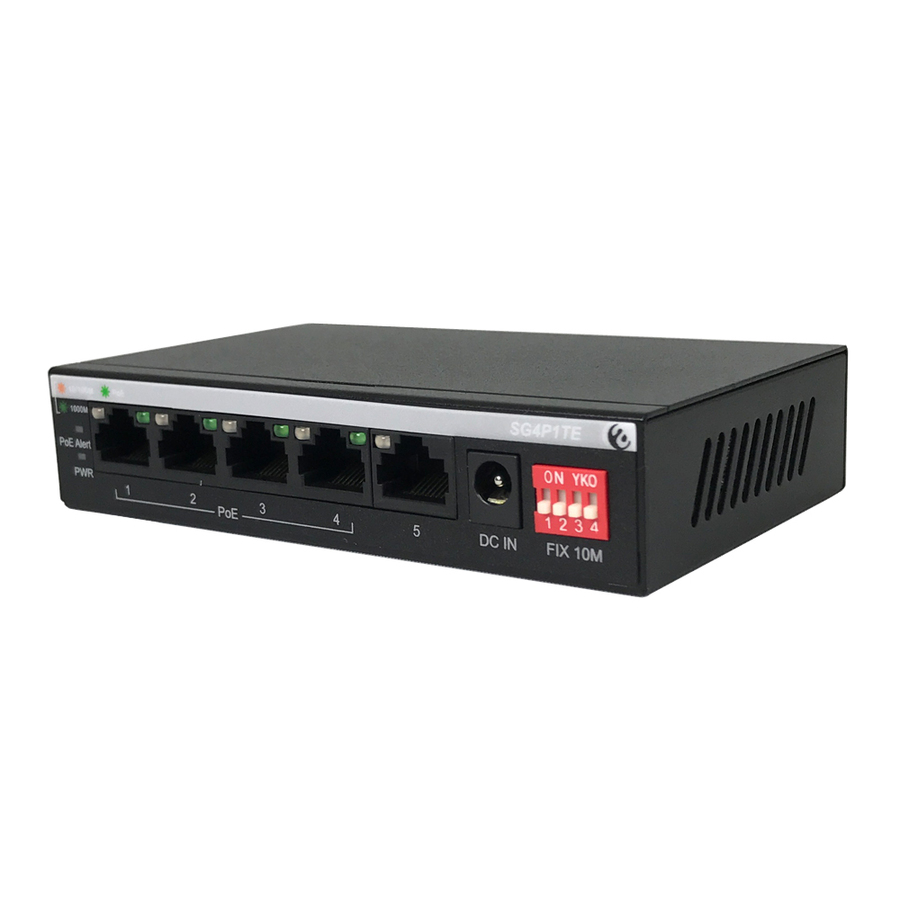

The SG4P1TE is a 5 port Gigabit 10/100/1000Base-T Ethernet unmanaged switch supporting 4 high power 802.3af/802.3at PoE+ ports with a total PoE budget of 60W. Each PoE+ port can be controlled manually to support either 10/100/1000Mbps at the standard Ethernet distance of 100m or set to 10Mbps to support range extension to a maximum of 180m (range dependent on cable quality). The compact size of the SG4P1TE makes it ideal for users with limited space. It is an excellent solution for network devices that require high-power such as indoor and outdoor surveillance equipment and access points.
Key Features and Benefits:
- Compliant with IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T, IEEE 802.3af, IEEE 802.3at
- Support Link-on cable length power saving and link-down power saving
- N-way auto-negotiation
- Alert system notification when PoE Power passes 50w and is close to the power budget
- Dip switch to place selceted port into Extended range mode at 10mbps
- Fanless Design
- Fanless Design
- Alert system notification when PoE Power passes 50w and is close to the power budget
- Dip switch to place selceted port into Extended range mode at 10mbps
- Support Link-on cable length power saving and link-down power saving
- N-way auto-negotiation
- PoE power budget 60W
- 5 port Gigabit with 4 port PoE+ Range Extend Unmanaged Switch
- Compliant with IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T, IEEE 802.3af, IEEE 802.3at
| Brand | |
|---|---|
| Brand | Amer Networks |
| Power & Battery | |
|---|---|
| Redundant Power Supply Suppor | No |
| Power Source | Power Adapter |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-T |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Total Number of Network Ports | 5 |
| Uplink Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| Appearance | |
|---|---|
| Modular | No |
| General Features | |
|---|---|
| Manageable | No |
| Manufacturer | Amer Networks, Inc |
| Misc Ports | |
|---|---|
| Stack Port | No |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Uplink |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
