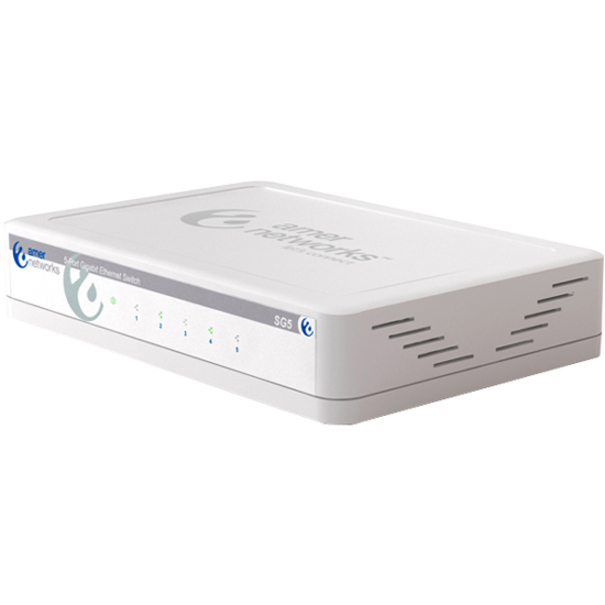

The SG5 desktop Switch provides 5 10/100/1000Mbps Auto-Negotiation RJ45 ports. All RJ45 ports support the Auto-MDI/MDIX function. Every port can works as uplink port or common port. The SG5 provides a cost-effective, high performance, non-disruptive, smooth evolution into 1000M solution. The Switch delivers superior performance with improving workgroup, network bandwidth, increasing network node, providing greater flexibility, installation convenience. It is the best choice for increasing your networking speed.
- Power
- Wake-on-LAN support
- LED status indicators: Port link activity; Port transmission speed;
- Supports networking standards IEEE 802.3; 802.3u, 802.3ab, 802.3x, 802.3az
- Auto-negotiation for port speed and duplex mode
- 5 Port Gigabit Ethernet Switch RJ45 10/100/1000Base-T
| Brand | |
|---|---|
| Brand | Amer Networks |
| Networking & Connectivity | |
|---|---|
| Token Ring Port | No |
| Network Technology | 10/100/1000Base-T |
| Layer Supported | 2 |
| USB Ports | |
|---|---|
| USB | No |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 5 |
| LRE Port | No |
| Total Number of Network Ports | 5 |
| PoE (RJ-45) Port | No |
| Uplink Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| Appearance | |
|---|---|
| Modular | No |
| General Features | |
|---|---|
| Manageable | No |
| Manufacturer | Amer Networks, Inc |
| Misc Ports | |
|---|---|
| Management Port | No |
| Stack Port | No |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Miscellaneous | |
|---|---|
| Bypass | No |
