The SGR124W supports an array of features to create a more manageable and efficient network deployment. With the easy to use Web Management interface accessible through a web browser, you can configure the switch to maximize your network performance and security. Energy usage has also been taken into account with the design of the switch to
support green Ethernet applications
- Fanless Design
- Complies with IEEE802.3az EEE Energy Efficient Ethernet Standard.
- an easy to use Web Interface that graphically displays
- Port trunking: Up to 8 groups, up to 12 ports per group
- Quality of Service (QoS)
- Supports 24 active VLANs

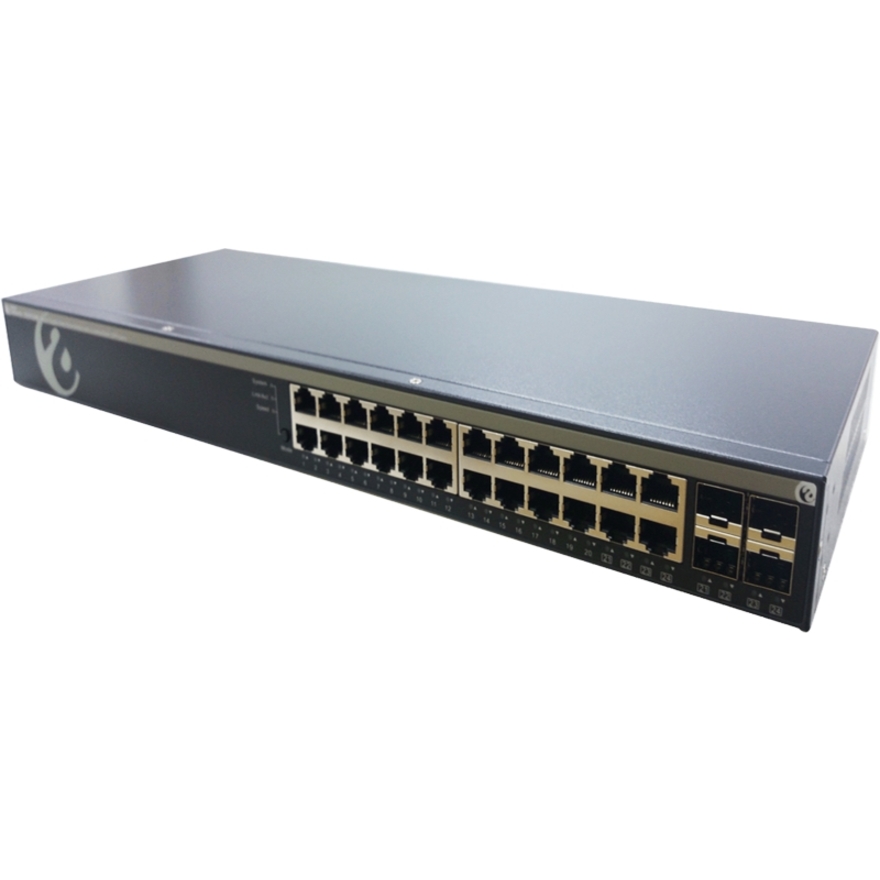

- 24 Port gigabit websmart managed switch with 20 x 1000BaseT Ports and 4 combo 1000BaseT/SFP
| Brand | |
|---|---|
| Brand | Amer Networks |
| Power & Battery | |
|---|---|
| Redundant Power Supply Suppor | No |
| Power Source | Power Supply |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-X |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Total Number of Network Ports | 24 |
| Uplink Port | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| Appearance | |
|---|---|
| Modular | No |
| General Features | |
|---|---|
| Manageable | Yes |
| Manufacturer | Amer Networks, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Shared SFP Slot | Yes |
| Misc Ports | |
|---|---|
| Stack Port | No |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
