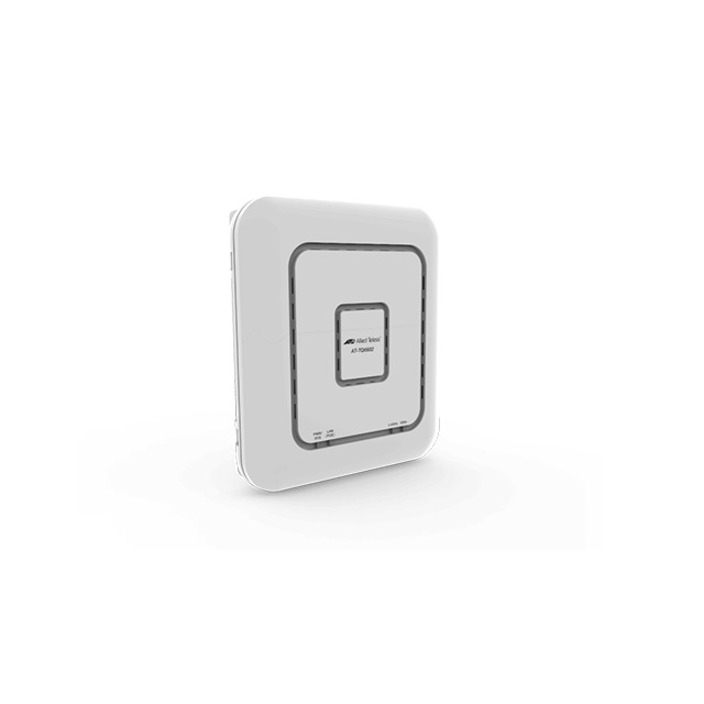

The innovative TQ6602 is the world's first Wi-Fi 6 AP to support multichannel, single-channel1 (Channel Blanket) and hybrid operation (the simultaneous use of multi-channel and Channel Blanket). This powerful solution combines maximum performance and seamless roaming to enable the most flexible wireless networks available, and the best possible user experience.
The TQ6602 has one 2.4GHz and one 5GHz Wi-Fi6 (802.11ax) radio, and supports Multi-User Multiple Input and Multiple Output (MU-MIMO), allowing multiple clients to send and receive data at the same time, substantially increasing throughput. A comprehensive feature-set provides a superior solution for Enterprise businesses.
The TQ6602 in standalone mode can be managed using its intuitive webbased interface. For medium and larger installations, Autonomous Wave Control (AWC) provides centralized management, and regularly analyses the wireless network, automatically optimizing AP settings to reduce interference and minimize coverage gaps-all with no user intervention. AWC wireless management is available on our Vista Manager EX network management platform, and from Vista Manager mini running on a number of switch and firewall products.
Flexible deployment options include desktop use, and wall or ceiling mounting. Power can be supplied by Power over Ethernet, or by an optional AC power adapter.
- The TQ6602 supports operation in multi-channel, single-channel1 (Channel Blanket) and hybrid (multi-channel and Channel Blanket) modes, for the most flexible wireless solution available.
- Multi-channel operation provides maximum throughput for high-bandwidth clients, while Channel Blanket operation supports seamless roaming for dynamic environments like warehouses and hospitals, as all APs appear as a single virtual AP.
- Hybrid mode combines the best of both architectures, enabling an innovative wireless solution that maximizes performance for a superior user experience.
- The high throughput of Wi-Fi 6 further increases the performance of hybrid networks in large environments with many clients.
- The TQ6602 supports Wi-Fi6 (802.11ax) bidirectional MU-MIMO. Unlike conventional unidirectional MU-MIMO, this feature enables the AP to transmit and receive data simultaneously from multiple clients at once, to lower latency and improve throughput and performance for end-user wireless devices.
- IEEE 802.11ax Wi-Fi 6 wirele
| Brand | |
|---|---|
| Brand | Allied Telesis |
| Power & Battery | |
|---|---|
| Power Consumption | 20 W |
| Networking & Connectivity | |
|---|---|
| MIMO Technology | Yes |
| Wireless Transmission Speed | 2.35 Gbit/s |
| Frequency Band | 5 GHz |
| Network Band | Dual Band |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| PoE PD Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Ceiling Mountable |
| Antenna Form Factor | Internal |
| Security | |
|---|---|
| Data Encryption | Yes |
| Encryption Standard | TKIP |
| General Features | |
|---|---|
| Manufacturer | Allied Telesis, Inc |
