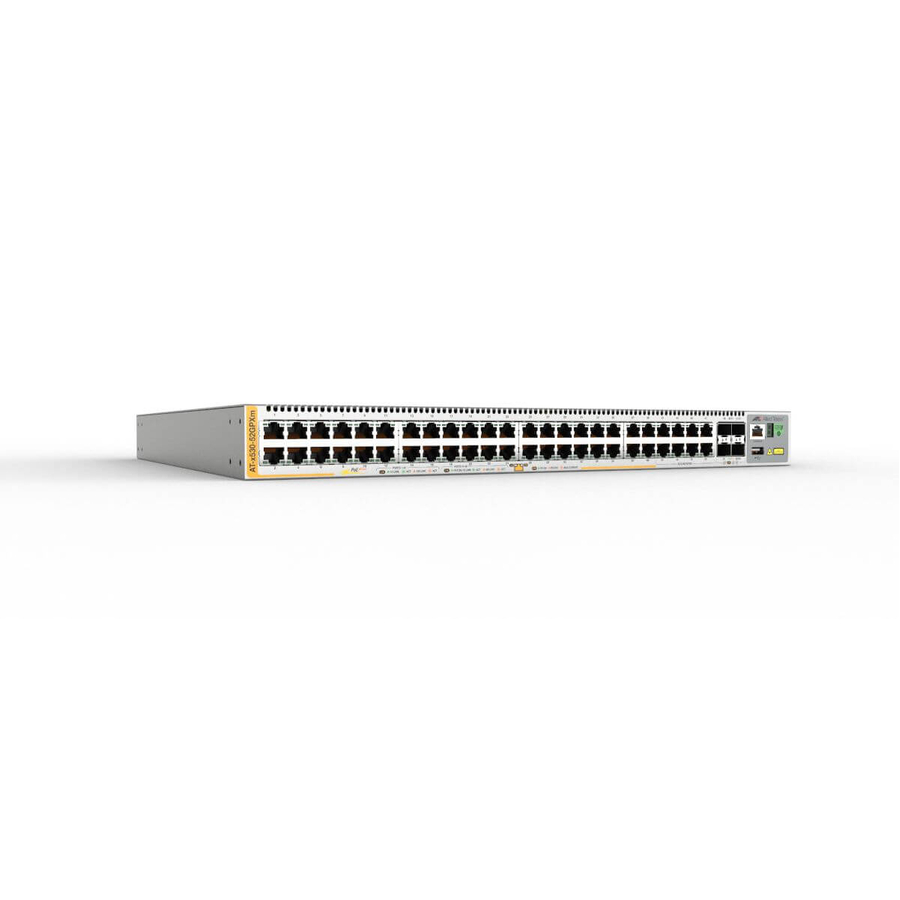

The x530-52GPXm stackable Gigabit layer 3 switch is high-performing and feature-rich, with 40 x 100M/1G and 8 x 100M/1G/2.5G/5G PoE+ ports, and 4 x 10G uplinks.
KEY FEATURES:
- AlliedWare Plus™ Enterprise-class operating system
- Support high-speed wireless, and network upgrades over legacy cabling, with 2.5G and 5G connectivity
- VCStack up to 8 units locally or over distance to support resilient networking
- Ethernet Protection Switched Ring (EPSRing™) and G.8032 ERPS supports high-speed resilient ring-based networks
- Power over Ethernet Plus (PoE+) supplies up to 30 Watts to connect and power endpoints such as PTZ security cameras, POS terminals, and wireless access points
- Continuous PoE ensures endpoint uptime, even during a switch firmware upgrade
- Layer 3 Switch ensures productivity by providing an efficient, hassle-free connection
- Increases the stack bandwidth of the stack port further than that of a single port
- Quickly and easily set up a wired network with 48 networking ports
- Supports layer 3 switching for enhanced performance and usability
- Rack mounting enables you to organize wires & secure cables for professional installation
- Management capability allows maximum efficiency and with unrestricted control
- Handles extremely large amounts of data with high data throughput and gives an unhindered performance
- Optical Fiber media support for a dependable and productive connectivity
| Brand | |
|---|---|
| Brand | Allied Telesis |
| Power & Battery | |
|---|---|
| Redundant Power Supply Suppor | Yes |
| Power Source | Power Supply |
| Power Consumption | 88 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-X |
| Layer Supported | 3 |
| Ethernet Port | |
|---|---|
| Total Number of Network Ports | 48 |
| Uplink Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Appearance | |
|---|---|
| Modular | Yes |
| General Features | |
|---|---|
| Manageable | Yes |
| Manufacturer | Allied Telesis, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Misc Ports | |
|---|---|
| Stack Port | Yes |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
